Cavity preservation following repair work - AR97.20-P-1500P

MODEL 203.0

Engine hood

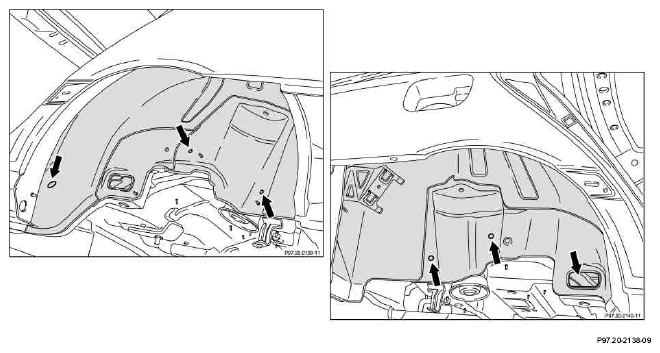

Front wheelhouse

Longitudinal member left and right rear wheelhouse

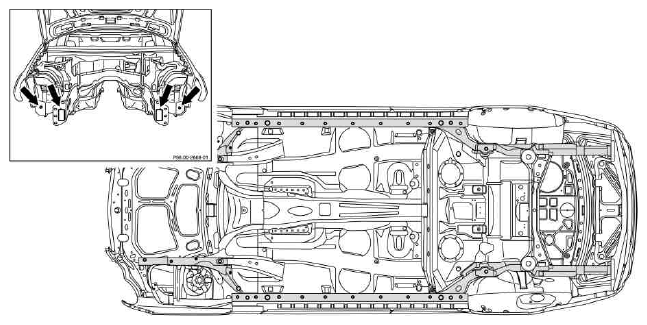

Longitudinal member front end and underbody

Driver and rear door

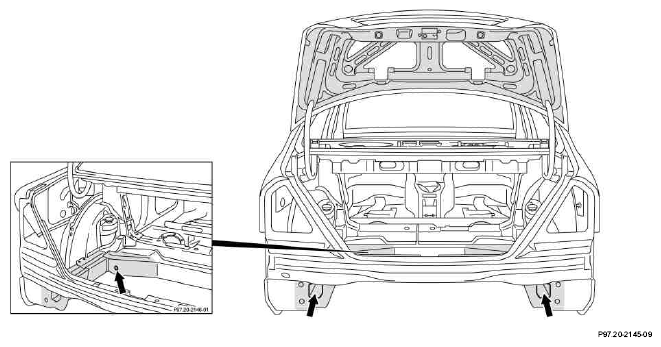

Rear end, rear cross member and tailgate

Picture item, etc.	Work instructions
	Risk of explosion  and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
	Apply wax preservation agent from inside in shaded areas following sealing and paintwork, however, before performing assembly work Apply repair preservation agent twice with a drying time of 5 minutes in between.	Insert spray hoses as far as possible into hollow cavities. Spray while inserting and pulling out slowly. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The hollow cavities should be dry.
	Ensure that the drain holes are not plugged following drying.	The processing temperature should not be less than +15 °C. Additional preservation measures may be required depending on the repair area deviating from the standard cavity preservation illustrated.
	Cavity protection, general		GF98.00-P-2045A
	Processing instructions for cavity preservation agent		AP97.20-P-0640-01A
		Cavity preservation gun Sata HRS no. 11072	*WE58.40-Z-1006-08A
		Preservation agent	*BR00.45-Z-1003-05A

WE58.40-Z-1006-08A

Cavity preservation gun

Number	Designation	Order number
BR00.45-Z-1003-05A	Preservation agent	A 000 986 72 70 05
