Separating rear fender - AR63.50-P-1400-02PB
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1006-01A | Vario Drill WS 91 spot weld removing tool |
| WH58.30-Z-1010-02A | Sheet metal crimping shears |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
| WH58.30-Z-1004-20A | Hot-air gun |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

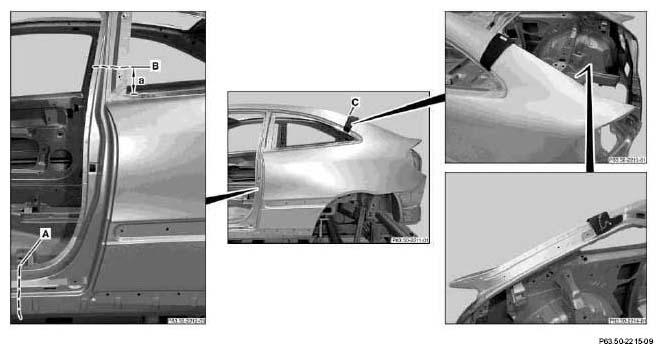

- Mark separation points and cut with body saw (areas A and B).
- Mark separation point on rear fender with aid of template and cut with body saw (area C).
Do not damage C-pillar, B-pillar and outer side longitudinal member below.

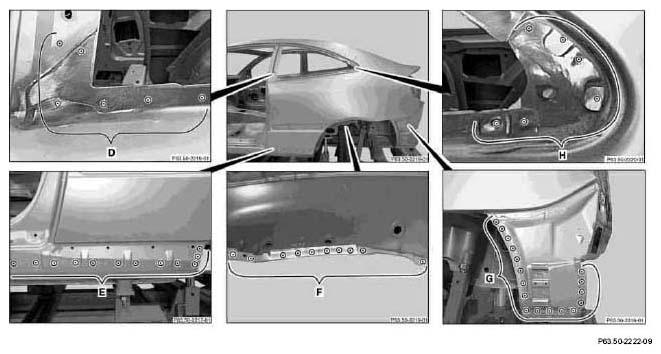

- Expose spot welds and cut out with spot weld cutter (areas D - H).

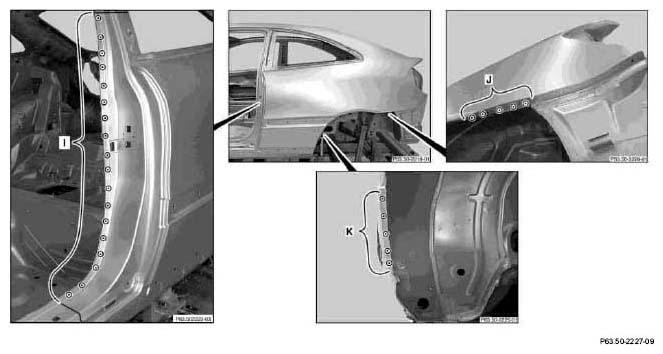

- Expose spot welds and cut out with spot weld cutter (areas I - K).

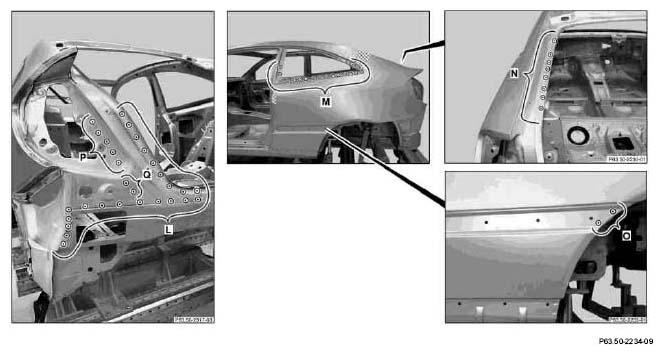

- Expose spot welds and cut out with spot weld cutter (areas L - Q).

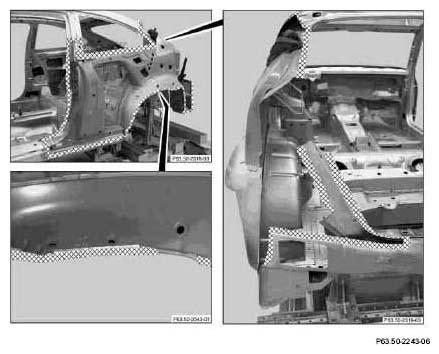

- Heat rear fender with hot air blower in shaded areas.
Shaded areas are foam filled.
- Remove rear fender.
- Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides
- Remove grinding and drilling chips using wet/dry vacuum cleaner.
- Coat insides of spot welding flanges with zinc dust paint.
- Cut rear fender to size in area of upper C-pillar with body saw and crimp inward with crimping pliers (arrows).
