Separating B-pillar with side longitudinal member - AR63.20-P-0550-01P

Fig 1: Identifying Spot Weld Cutter (201 589 00 51 00)
G04738772
Fig 2: Identifying Cutting Templates (203 589 06 23 00)
G04738773
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)

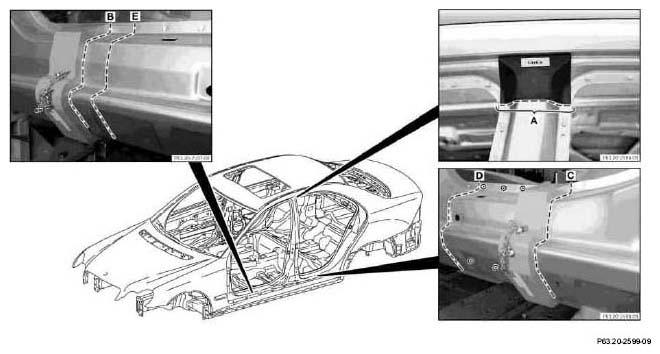

Fig 3: Identifying Separation Points On B-Pillar And Side Longitudinal Member
G04738774
  1. Mark separation points on B-pillar (area A) as well as on side longitudinal member (areas B - E).

    IMPORTANT Mark separation points with cutting templates.

    NOTES Separation point E is offset approx. 50 mm from separation point B in direction of B-pillar.

    NOTES Separation point D is off set approx. 250 mm from separation point C in direction of B-pillar.

  2. Separate separation points with body saw (areas C and D).

    NOTES Do not damage longitudinal member below.

  3. Expose spot welds in between and cut out with spot weld cutter.
  4. Remove longitudinal members.

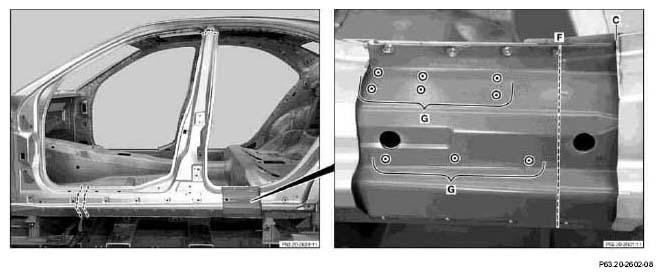

    Fig 4: Identifying Spot Welds Area And Separation Point
    G04738775
  5. Expose spot welds and cut out with spot weld cutter (areas G).
  6. Detach reinforcement below.
  7. Mark separation point (area F).

    NOTES Separation point F is offset approx. 50 mm from separation point C in direction of B-pillar.

  8. Separate separation points with body saw (area F).

    NOTES Do not damage reinforcement below.

  9. Completely cut separation point with body saw (area A).

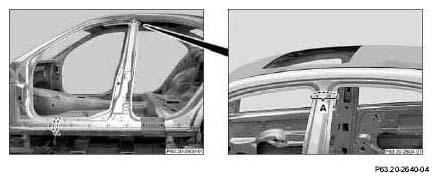

    Fig 5: Identifying B-Pillar Cutting Area (1 Of 2)
    G04738776

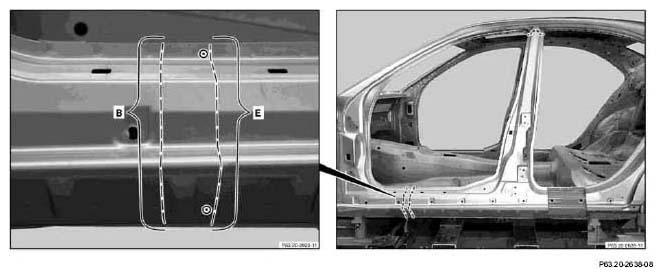

    Fig 6: Identifying B-Pillar Cutting Area (2 Of 2)
    G04738777
  10. Cut separation point with body saw (area B).

    IMPORTANT Do not damage longitudinal member below.

  11. Completely cut separation points with body saw (area E).
  12. Expose spot welds in between and cut out with spot weld cutter.

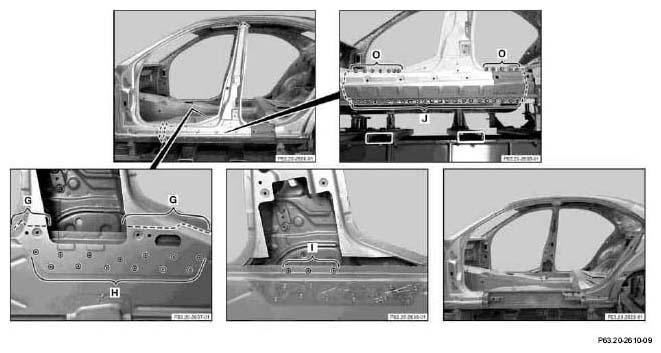

    Fig 7: Identifying B-Pillar Spot Welds Area (1 Of 3)
    G04738778
  13. Expose spot welds and cut out with spot weld cutter (areas J and O).
  14. Separate inner B-pillar with body saw (areas G).
  15. Cut out spot welds with spot weld cutter (area H).
  16. Remove inner B-pillar (section).
  17. Cut out spot welds with spot weld cutter (area I).
  18. Completely remove B-pillar with side longitudinal member.

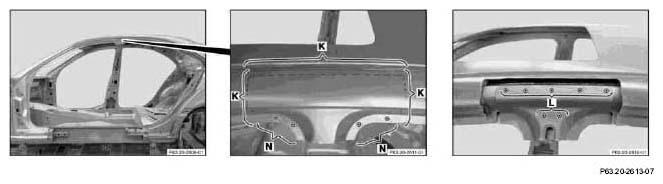

    Fig 8: Identifying B-Pillar Spot Welds Area (2 Of 3)
    G04738779
  19. Mark side roof paneling (area K).
  20. Cut out side roof paneling with body saw (area K).
  21. Cut out spot welds with spot weld cutter (area N).

    IMPORTANT Spot welds in areas N are two-layered.

  22. Remove roof paneling section.
  23. Cut out spot welds with spot weld cutter (area L).
  24. Remove B-pillar reinforcement.

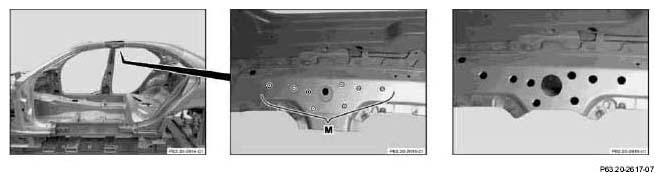

    Fig 9: Identifying B-Pillar Spot Welds Area (3 Of 3)
    G04738780
  25. Cut out spot welds with spot weld cutter (area M).
  26. Remove inner B-pillar.
