Separate rear fender - AR63.50-P-1400-02P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1006-01A | Vario Drill WS 91 spot weld removing tool |
| WH58.30-Z-1010-02A | Sheet metal crimping shears |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23,500 rpm) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1001-05A | Two-post lifting platform |

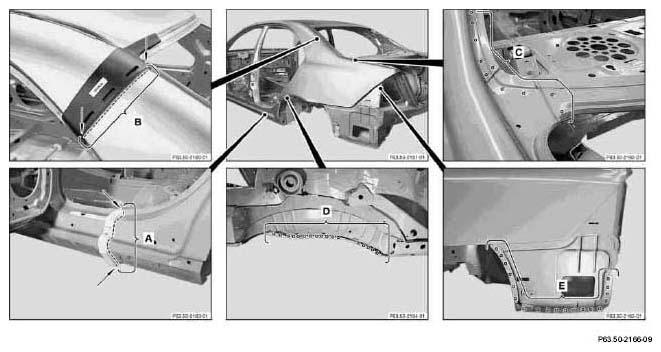

- Mark separation point on rear fender with aid templates (arrows).
- Cut (area A-B) with body saw.
Do not damage C-pillar and longitudinal member beneath.

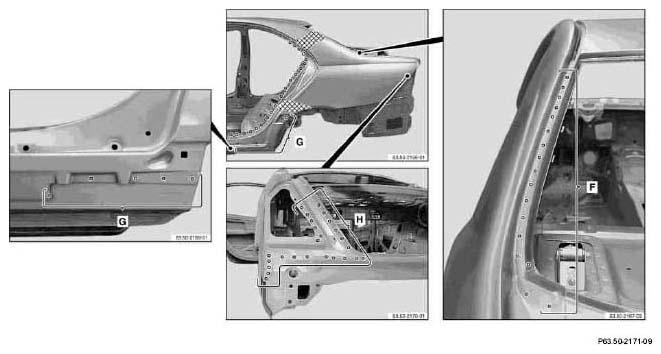

- Expose spot welds and cut out (areas C-H).
- Heat rear fender in cross-hatched areas with hot air gun.
Cross-hatched areas are foam-protected.
- Remove deformed rear fender.

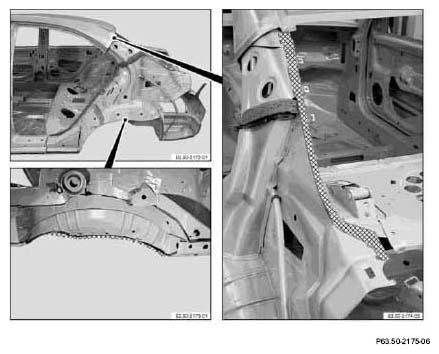

- Grind spot weld flanges down to bare metal on both sides (checked areas). Coat insides of spot weld flanges with zinc dust paint.

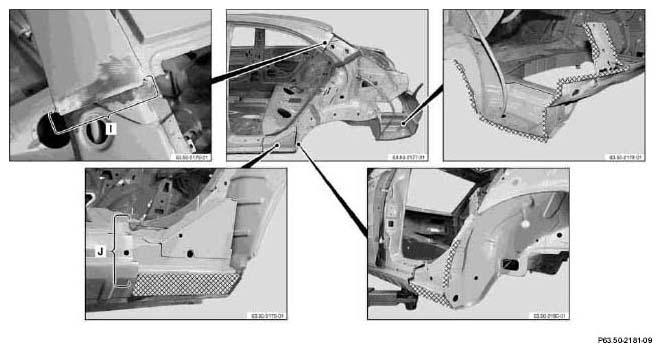

- Grind mating surfaces down to bare metal (areas I-J).
- Cut rear fender to size in area of upper C-pillar with body saw and crimp toward inside with sheet metal sheet metal crimping pliers (arrows).
