Preparing new rear fender - AR63.50-P-1400-03PB
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-02A | Hole punching pliers, dia. 6 mm. |
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

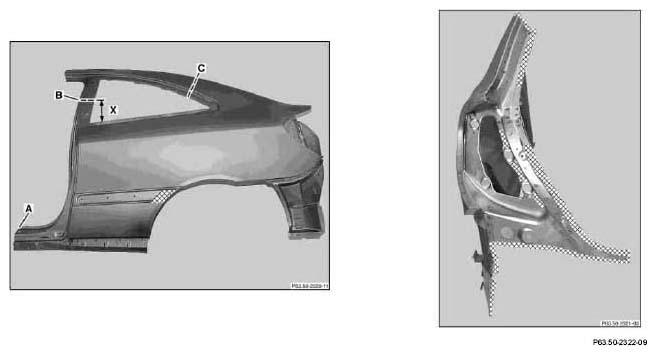

- Mark separation cut on new part with aid of template and cut with body saw (area C).
- Mark separation cut on new part and cut with body saw (area B). Dimension : X= approx. 12 cm
- Grind connection surfaces on new part down to bare metal (areas A, B and C).
- Grind spot welding flanges in shaded areas down to bare metal on both sides. Coat inside of spot welding flanges with zinc dust paint

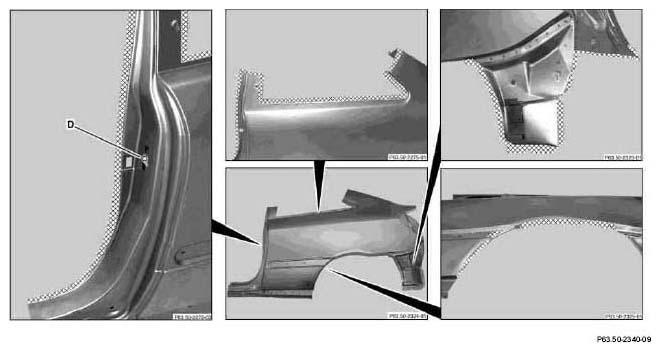

- Drill 7 mm dia. holes in new part (area D).

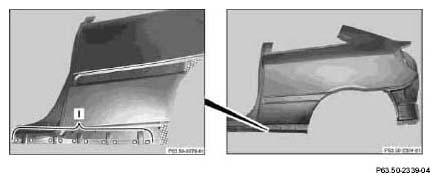

- Punch 6 mm dia. holes for riveting (area I).
