Preparing B-pillar for installation - AR63.20-P-1350-07PB

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-02A	Hole punching pliers, dia. 6 mm.
WH58.30-Z-1002-02A	Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

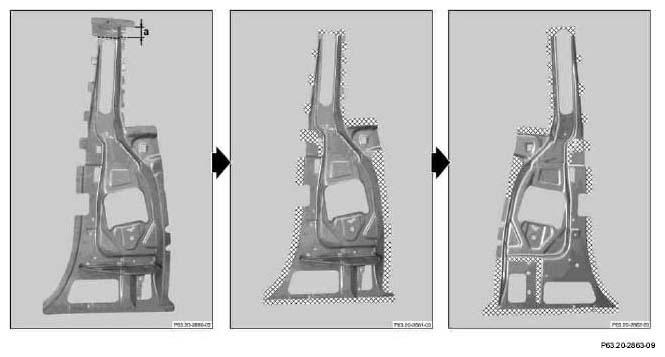

Fig 1: Identifying B-Pillar Grinding Area

1. Mark separation point and cut with body saw. Dimension a: approx. 2.5 cm
2. Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.
3. Punch 7 mm dia. holes (areas H, N and Q).
4. Punch 6 mm dia. holes (area D).

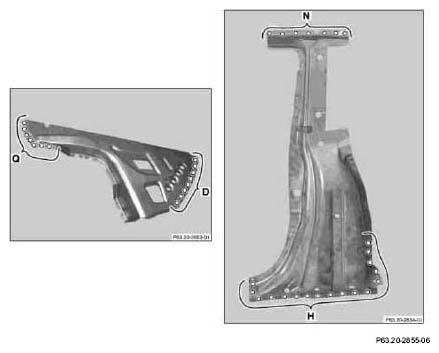

   Fig 2: Identifying B-Pillar Holes

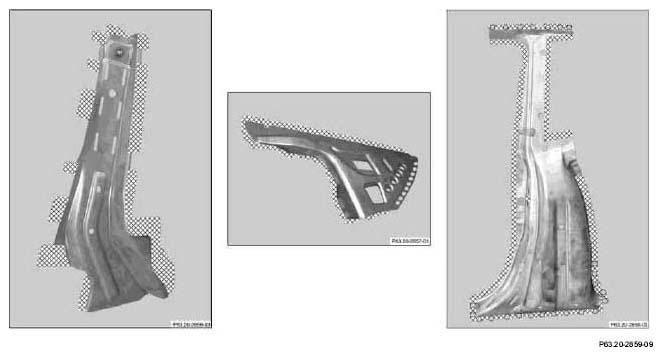

   Fig 3: Identifying B-Pillar Grinding Area


5. Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.
