Install outer side longitudinal member and weld in - AR63.30-P-1050-03P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23,500 rpm) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
| WH58.30-Z-1003-29A | Hand riveter |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

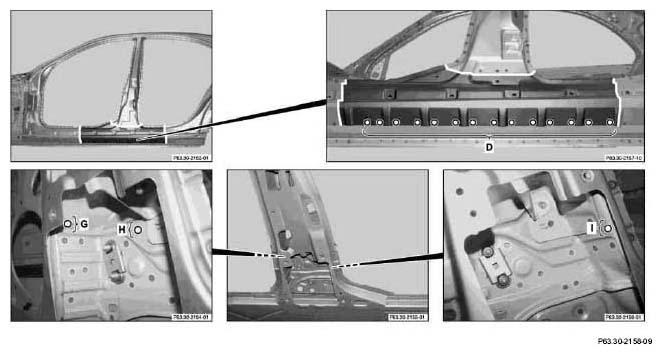

- Drill holes for cavity preservation (area G, H and I).
Do not damage outer paneling.
- Install side longitudinal member, fit and fasten with clamping pliers.
- Drill dia. 6.5 mm rivet holes (area D).
- Remove outer side longitudinal member and deburr rivet holes on both sides.
- Install outer side longitudinal member and fasten with clamping pliers and pop-up rivets.
- Rivet outer side longitudinal member and longitudinal member with 6.4 mm dia. x 14 mm Polygrip flat head rivets (area D).

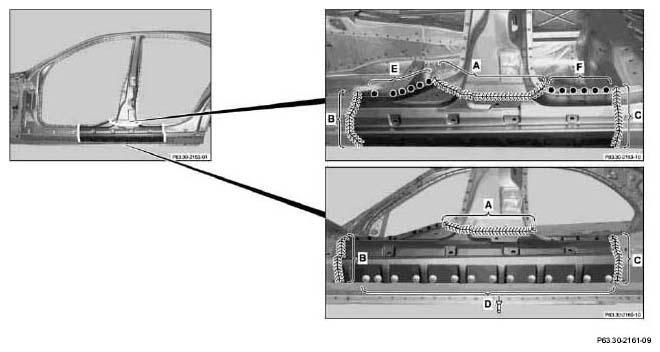

- Weld in side outer longitudinal member with
(areas E and F).
- Weld in side outer longitudinal member with
(areas A, B and C).
- Grind off inert gas welding seams.

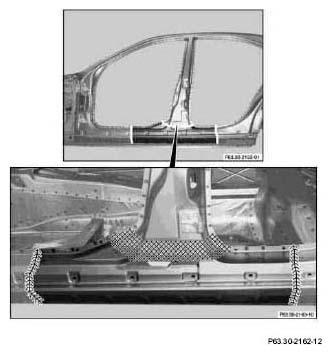

- Fill outer side longitudinal member with body solder in shaded areas and smooth.
