Preparing rear outer wheelhousing liner for installation - AR63.10-P-0670-05P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |

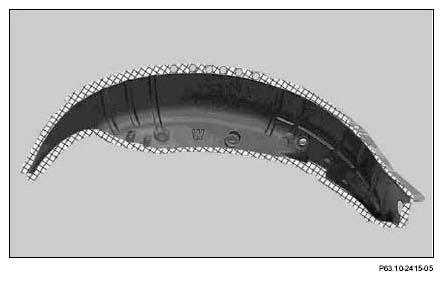

- Grind connection surfaces in checked areas to bare metal. Grind spot weld flanges to bare metal on both sides.
- Punch 7 mm Ø holes
- Coat insides of spot welding flanges with zinc dust paint.
