Preparing rear outer wheelhouse for installation - AR63.10-P-0670-05PB

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-02A Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
  1. Fit rear outer wheelhouse.
  2. Transfer holes cut out on inner wheelhouse to outer wheelhouse (area H).
  3. Mark upper row of holes for C-pillar connection offset to holes in rear inner wheelhouse (area I)

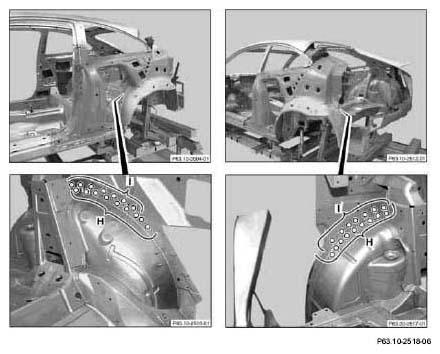

    Fig 1: Identifying Holes Cut Out Area On Rear Inner Wheelhouse
    G04738628

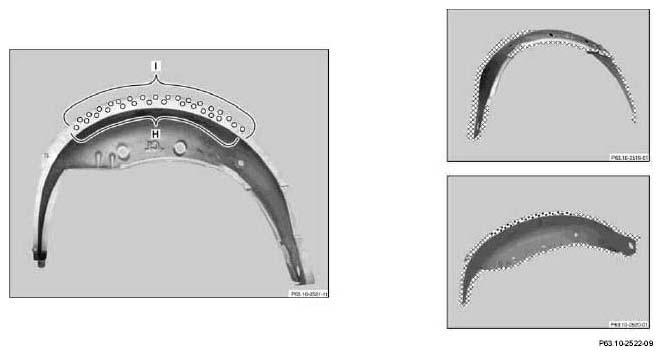

    Fig 2: Identifying Holes In Rear Inner Wheelhouse
    G04738629
  4. Punch holes with dia. 7 mm bit (areas H and I).
  5. Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.
