Preparing inner C and D-pillar side wall - AR63.10-P-0800-02PA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
- Fit outer rear wheelhouse and C - D-pillar.
- Transfer holes cut out on rear inner wheelhouse to rear outer wheelhouse (area F).

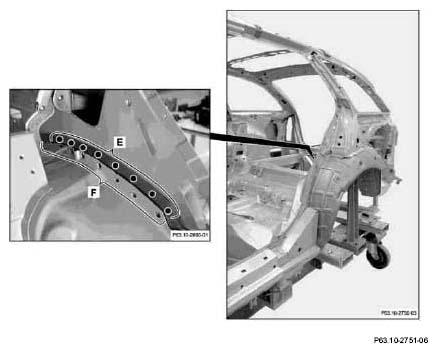

- Mark upper row of holes for C-pillar connection offset to holes in rear inner wheelhouse (area E)
- Remove rear wheelhouse and C-D-pillar side wall
- Punch holes with Ø 7 mm bit.

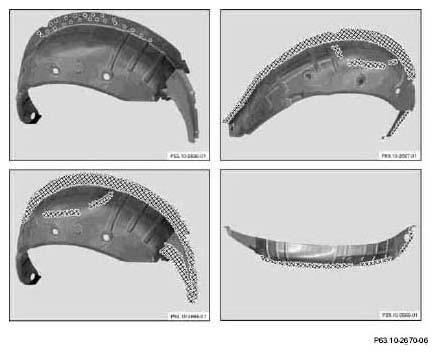

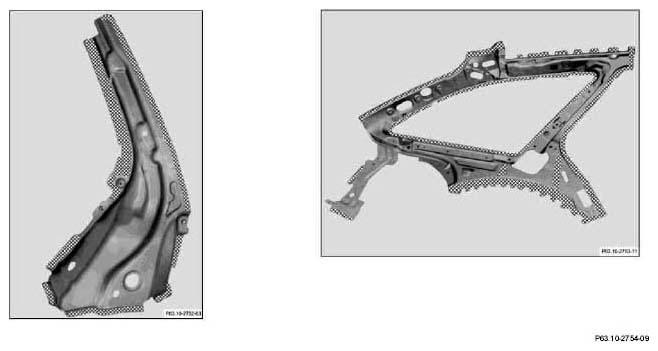

- Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.
