Install and weld in side wall inner C-pillar - AR63.10-P-0700-03P

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1003-01A	Electrode miller
WH58.30-Z-1003-02A	Clamping pliers
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-02A	Inert gas welder
WE58.40-Z-1002-02A	Spot welder
WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

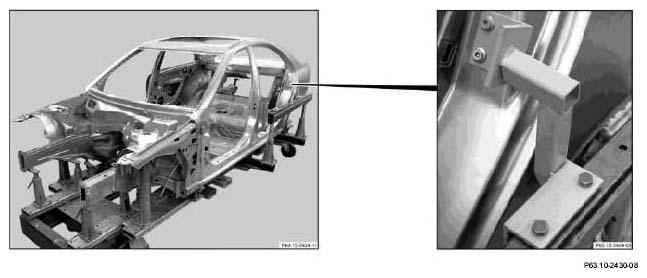

Fig 1: Position Of Rear Fender (Inner C-Pillar Side Wall) Fastened With Check And Welding Device

Install new spare foam part (size 68).
Fit inner C-pillar side wall and C-pillar paneling together with rear fender.
Fasten position of rear fender (inner C-pillar side wall) with check and welding device. On vehicles with sliding roof, clip into water drain hose.
Remove rear fender.

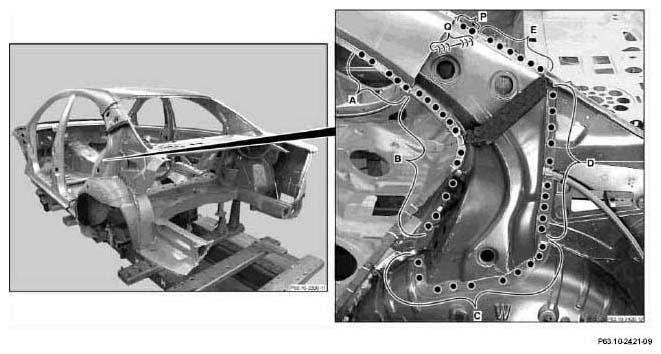

Fig 2: Identifying Inner C-Pillar Side Wall Spot Welds Area (1 Of 4)
(areas A -E).
(area P).
(area Q).

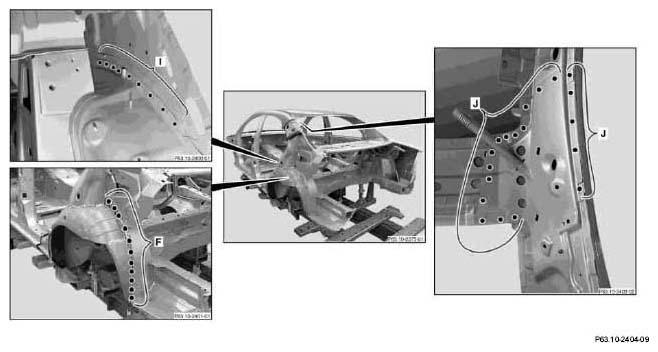

Fig 3: Identifying Inner C-Pillar Side Wall Spot Welds Area (2 Of 4)
(area I and J).
(area F).

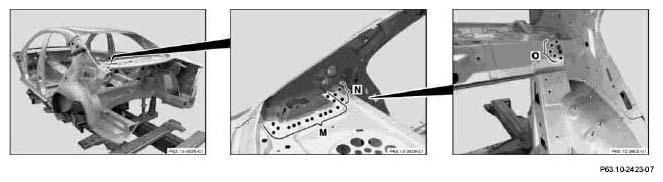

Fig 4: Identifying Inner C-Pillar Side Wall Spot Welds Area (3 Of 4)
(area M).
(areas N and O).

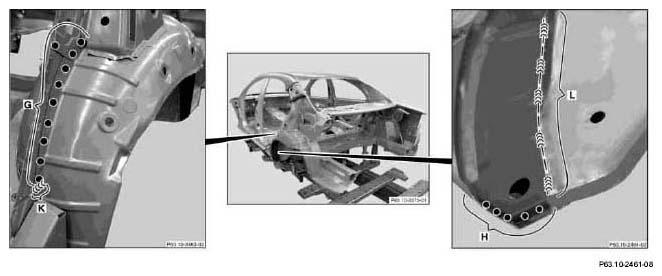

Fig 5: Identifying Inner C-Pillar Side Wall Spot Welds Area (4 Of 4)
(area G and H).
(area K).
(area L).
Clean weld joints with wire brush.
Remove grinding and drilling chips with wet/dry vacuum cleaner.
Perform corrosion protection measures in area of C-pillar paneling to outer rear wheelhouse (arrow).

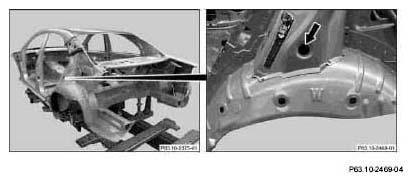

Fig 6: Identifying Corrosion Protection Measures Area In C-Pillar Paneling
