Notes on repairing A-pillar with side longitudinal member - AH63.20-P-1150-01PB

Model 203.7

When installing A-pillar use spacers (1)

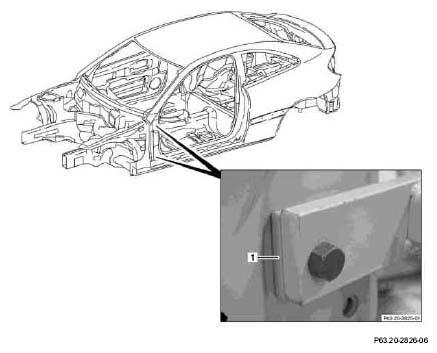

Fig 1: Identifying Spacers At A-Pillar

G04738582
