Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01PA
| Number | Designation | Model 203.204/206/207/208/216/218/220/235/240/242/243/245/246/252/254/256/261/264/265/281/284/287/292 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01E | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (± 1) |
| Engine hood to headlamp | Dimension "R" | mm | 4 (0.5/+1.5) | ||
| Engine hood to bumper | Dimension "D" | mm | - | ||
| See figure in | AR60.00-P-0700-01PA | ||||
| BE60.00-P-1002-01E | Gap dimension | Front door to A-pillar | Dimension "B" | mm | 6.5 (+1) |
| Front door to fender | Dimension "H" | mm | 3.5 (0.5/+1) | ||
| Front door to rear door | Dimension "I" | mm | 4 (0.5/+1) | ||
| Front door to roof | Dimension "C" | mm | 6.5 (+1) | ||
| Rear door to C-pillar | Dimension "T" | mm | 6 (+1) | ||
| Rear door to side section, bottom | Dimension "J" | mm | 3.5 (+1) | ||
| Front door to rear fender | Dimension "P" | mm | - | ||
| See figure in | AR60.00-P-0700-01PA | ||||
| BE60.00-P-1003-01E | Gap dimension | Trunk lid to rear fender, top | Dimension "F" | mm | - |
| Trunk lid to taillamp | Dimension "M" | mm | - | ||
| Rear fender to taillamp | Dimension "U" | mm | 2 (0.5) | ||
| See figure in | AR60.00-P-0700-01PA | ||||
| BE60.00-P-1004-01E | Gap dimension | Rear end door to roof | Dimension "E" | mm | 6.5 (± 1) |
| Rear - end door to rear fender | Dimension "M" | mm | 3.5 | ||
| Rear - end door to taillamp | Dimension "L" | mm | 4 | ||
| Rear - end door to bumper | Dimension "S" | mm | 5.5 | ||
| Rear - end door to D - pillar | Dimension "Q" | mm | - | ||
| See figure in | AR60.00-P-0700-01PA | ||||
| BE60.00-P-1005-01E | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3.5 (- 0.5/+0.5) |
| See figure in | AR60.00-P-0700-01PA | ||||

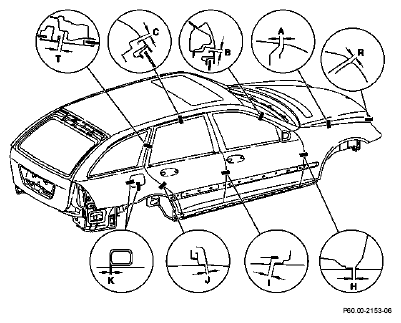

Adjust hood, doors and lids as shown in drawings. The gap should not run wedgeshaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
Adjust hood, doors and lids as shown in drawings. The gap should not run wedgeshaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
