Crossing out vehicle identification number and repunching in spare field - AR60.00-P-0800-05P

Fig 1: Identifying Set Of Number Punches (140 589 26 63 00)

Fig 2: Identifying Set Of Letter Punches (140 589 26 63 05)

Fig 3: Identifying Number Punch Guide (203 589 00 63 00)

1. Cross out erroneous vehicle identification number with "X" letter punch.
2. Turn number punch guide to spare field.

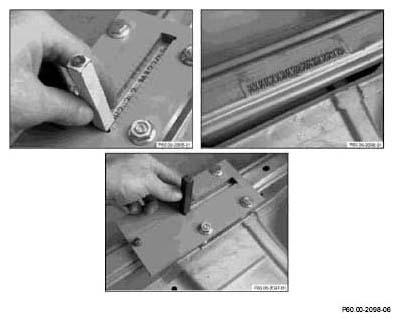

   Fig 4: Crossing Out Vehicle Identification Number


3. Start with "Mercedes star" symbol punch at left in window plate (arrow). The number punch should be positioned against the left side of the window plate.

   The tip of the Mercedes star should point upward in relation to the letters.

4. Then position and punch in the "W" letter punch at the left edge of the first increment marking in the window plate.
5. Move forward one increment mark on the scale in the window plate with each subsequent number punch until the complete vehicle identification number and final Mercedes star have been punched in the cross member.
   Fig 5: Identifying Repunched Vehicle Identification Number In Spare Field
