Remove/install pedal assembly for parking brake - AR42.20-P-0510P

MODELS 203, 209

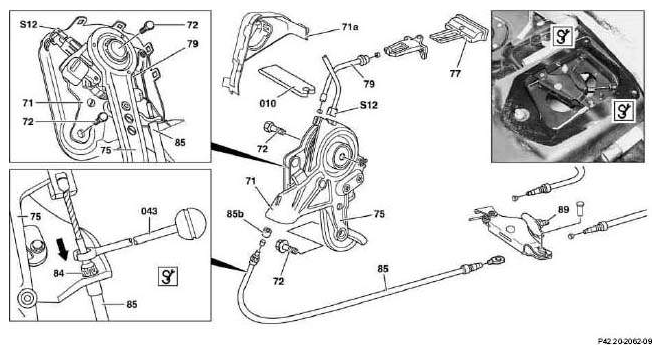

Fig 1: Identifying Pedal Assembly For Parking Brake Remove/Install Components (Shown On Model 203)

Shown on pedal assembly, model 203

MODIFICATION NOTES

11.12.02

Check version of pedal assembly, added

Step 11

	Remove/install
1	Remove rear seat cushion	Fold rear seat cushion forwards.
		Models 203.2/7/0, 209.3 with through-loading facility, code 287a	AR91.12-P-1020P
		Model 203.0 without through-loading facility, code 287a	AR91.12-P-1020PC
		Type 209.4	AR91.12-P-1020QA
2	Remove cover panel below rear seat cushion
3	Loosen adjusting nut (89) on cable slack adjuster
4	Remove cover below instrument panel		AR68.10-P-1500P
5	Remove cover (71a) of pedal assembly (71)
6	Unhook brake cable (85) from tensioning shackle on parking brake pedal (75)	Clip remover	Fig 2
7	Detach pedal assembly (71)	Bolt of foot controls, foot-operated parking brake, on front wall pillar	*BA42.20-P-1001-01A
8	Detach plug from parking brake indicator switch (S12)	To do this, raise the pedal assembly (71) slightly.
9	Unhook release cable (79) from pedal assembly (71)	On the pedal assembly (71) with friction brake, unhook release cable (79) from pedal assembly (71) using tool (010).
	Tool for parking brake cable release		WF58.50-P-4220-01A
10	Remove foot controls (71)	Do not loosen torx bolts on the back of the pedal assembly (71). Otherwise the pedal assembly (71) will be irreparably damaged.
11	Install in the reverse order
	Check
12	Check version of pedal assembly (71)
	Parking brake pedal assembly (71) modified		BT42.20-P-0510-01A
13	Adjust parking brake		AR42.20-P-0540A

PARKING BRAKE

Number	Designation		Model 203	Model 209
BA42.20-P-1001-01A	Bolt, foot-operated parking brake pedal assembly at front wall pillar	Nm	12	12

Fig 2: Identifying Snap-Release Tool (129 589 11 63 00)
