Remove/install brake booster - AR43.10-P-0350P

MODELS 203

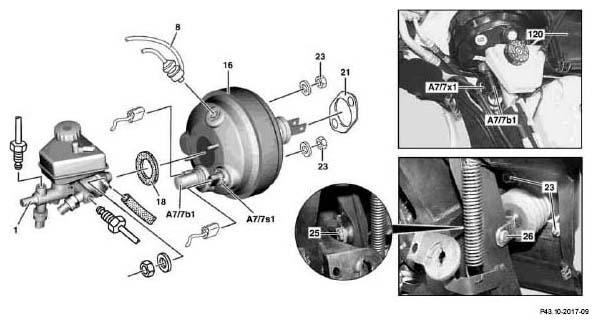

Fig 1: Identifying Brake Booster Remove/Install Components (1 Of 2)
G04733590

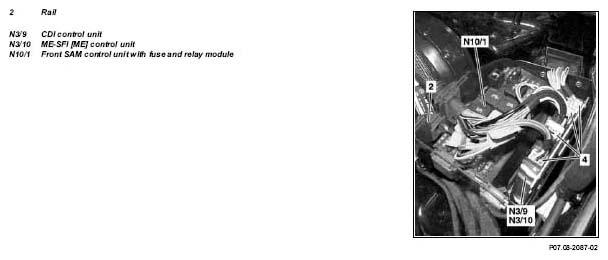

Fig 2: Identifying Brake Booster Remove/Install Components (2 Of 2)
G04733591
REMOVINGINSTALLING Remove/Install
DANGER Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism  Always remove ignition key when working on windshield wiper mechanism. AS82.30-Z-0001-01A
DANGER Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes. Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on handling brake fluid   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
NOTES Notes on externally invisible brake fluid loss   AH42.10-P-9406-02A
1 Remove wiper system   AR82.30-P-6400P
2 Remove master brake cylinder (1). INSPECT Check brake master cylinder for leaks at rear of thrust rod piston. AR42.10-P-0310P
3 Detach diaphragm travel sensor connector (A7/7x1) from BAS diaphragm travel sensor (A7/7b1)
4 Detach connector from BAS release switch (A7/7s1)
5 Disconnect vacuum line (8) from brake booster (16) IMPORTANT Operate brake pedal several times until vacuum in brake booster is reduced
6.1 Pull out CDI control unit (N3/9) and put to one side Engine 611, 612, 646
IMPORTANT Do not detach any connectors.
AR07.08-P-7008P
6.2 Pull out ME-SFI [ME] control unit (N3/10) and put to one side Engine 111, 112, 113
IMPORTANT Do not detach any connectors.
AR07.08-P-7008P
7 Unscrew bolts on front SAM control unit with fuse and relay module (N10/1)
8 Unlock and pull out rail (2) on module box
9 Remove mechanical stop lamp switch   AR42.10-P-0040P
10 Remove cover of foot controls
11 Detach locking device (25) on brake booster to brake pedal
12 Take out bolt (26)
13 Unscrew fixing nuts (23) of brake booster TORQUE SPECIFICATION *BA43.10-P-1002-01A
14 Remove brake booster (16) IMPORTANT Do not damage rubber boot when removing and installing the brake booster.
IMPORTANTInstallation:  Replace gasket (21) if necessary.

15 Install in the reverse order
TORQUE SPECIFICATION PNEUMATIC BRAKE BOOSTER

Number Designation Model 203
BA43.10-P-1002-01A Nut, brake booster carrier to front end Nm 20
