Connecting and disconnecting tester at brake booster - AR43.10-P-0024-01P

Fig 1: Identifying Vacuum Tester (201 589 13 21 00)

Fig 2: Identifying Test Connection (168 589 08 63 00)

1. Disconnect vacuum line (8) from brake booster (16).
2. Connect test connection for testing of non-return valve and brake booster (031) between brake booster (16) and vacuum line (8).
3. Connect tester (030) to test connection (031).

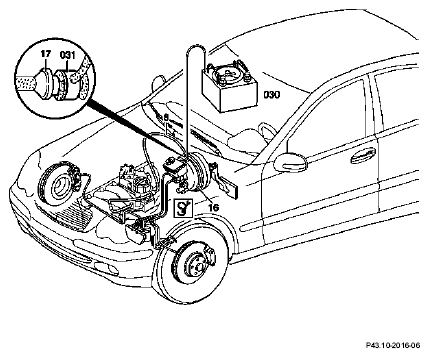

   Fig 3: Checking Check Valve
