Service Information: Update of wiring diagram ESP control unit - SI42.45-P-0005A

MODEL 203

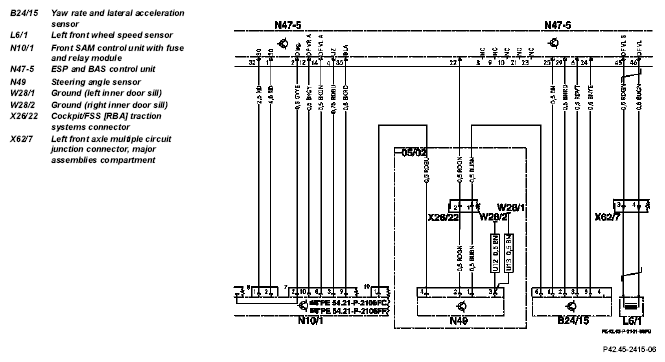

Fig 1: ESP Control Unit Wiring Diagram

Here is the updated section of the PE42.45-P-2101FB wiring diagram.

Since 06/02, the steering angle sensor (N49) is now directly connected to the steering column module (N80) (see the PE46.10-P-2101FA wiring diagram).

Up to 05/02, the steering angle sensor (N49) was connected to the ESP control unit.

The revised wiring diagram will be published in WIS CD 01/04.
