Removing and installing gas pressure strut on tailgate - AR72.20-P-3600PA
MODELS 203.2 /7
Illustrated using Model 203.2
| Removing, installing | |||
| Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate and sliding roof. | When moving components ensure that no body parts or limbs are in the area of movement. | AS00.00-Z-0011-01A | |
| Injury hazard Gas pressure struts are under high pressure and can pinch and crush body parts during work | Remove and install gas pressure struts only in relaxed position and on components properly secured. | AS00.00-Z-0012-01A | |
| 1 | Secure tailgate with support | ||

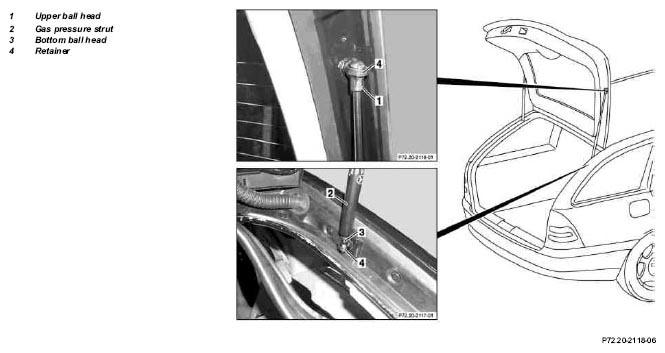

| 2 | Lift retainer (4) on upper ball head (1) | ||
| 3 | Remove upper ball head (1) | ||
| 4 | Lift retainer (4) at bottom ball head (3) | ||
| 5 | Remove bottom ball head (3) | ||
| 6 | Remove gas pressure strut (2) | ||
| Dispose of gas pressure strut (old part) | OS00.00-P-1001-01A | ||
| 7 | Install in the reverse order |
