Remove/install door lining on rear door - AR68.30-P-1050PA

MODEL 203.2

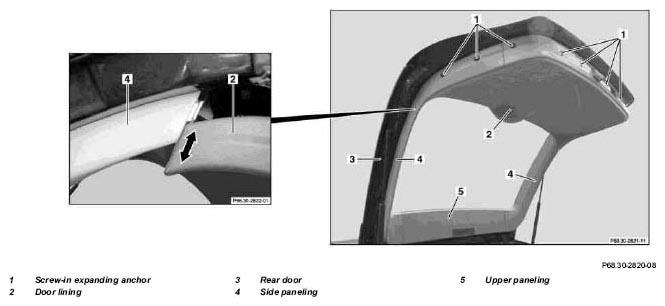

Fig 1: Identifying Door Lining On Rear Door Remove/Install Components

	Remove/Install
1	Open tailgate
2	Remove screw-in expanding anchor (1)	Installation:  Replace damaged screw-in expanding anchor (1)
3	Press off door lining (2)	Pull door handle recess away from rear door (3). Move left hand between door lining (2) and rear door (3) and press off door lining (2).
4	Move door lining (2) out of side paneling (4) and lay down on suitable subsurface
5	Press side paneling (4) off of rear door (3), unclip from upper paneling (5) and remove	Danger of breakage. On left and right.
			Figure
6	Press upper paneling (5) off of rear door (3) downward and remove		Figure
7.1	Partially replace rear door(3) lining (2)	If necessary.	AR68.30-P-1055PA
8	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
