Install microphone wiring harness for sound system in headliner - AR68.30-P-4305-03PA

Illustrated on vehicle with code (414a) glass electric sliding roof and code (543) sun visors with illuminated mirror and code (882b) interior protection system (only with ATA) and code (220a) Parktronic system (PTS)

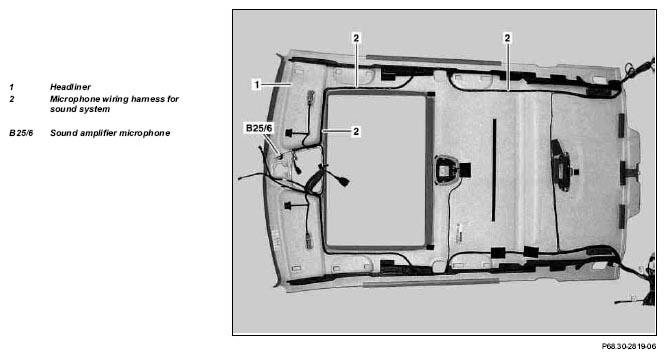

Fig 1: Identifying Sound Amplifier Microphone. Headliner And Wiring Harnesses

1. Lay new headliner (1) down on suitable clean subsurface.
2. Shim new headliner (1) with suitable clean spacers, e.g. foam rubber or Styrofoam pads.

   Do not use any hard or sharp-edge objects, otherwise the cover of the new headliner (1) can be damaged

   The foam rubber and Styrofoam pads prevent the new headliner (1) from sagging when performing the following steps.

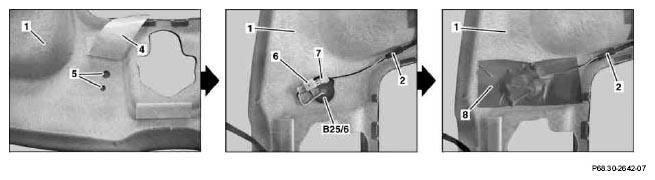

   Fig 2: Identifying Headliner, Electrical Connectors, Strips And Sound Amplifier Microphone


3. Remove strips of adhesive tape (4).
4. Connect electrical connector (6) for new sound amplifier microphone (B25/6) with electrical connector (7) for new microphone wiring harness for sound system (2) and arrest on sound amplifier microphone (B25/6).
5. Align new sound amplifier microphone (B25/6) in specified hole pattern (5) in new headliner (1) and glue with approx. 10 cm long strip of adhesive tape (8) as illustrated.

   Press on strips of adhesive tape sufficiently, otherwise sound amplifier microphone (B25/6) can detach

6. Route new microphone wiring harness for sound system (2) and glue with approx. 10 cm long strip of adhesive tape at a distance of approx. 10 cm onto new headliner (1)

   Press strips of adhesive tape on sufficiently, otherwise a short circuit can result from chafing of the microphone wiring harness for sound system (2) on the roof paneling.

   The old roof paneling (1) serves as a guide for routing the wiring harness.
