Install IRS wiring harness in headliner - AR68.30-P-4305-10P
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-02A | Adhesive tape | A 001 989 17 85 |

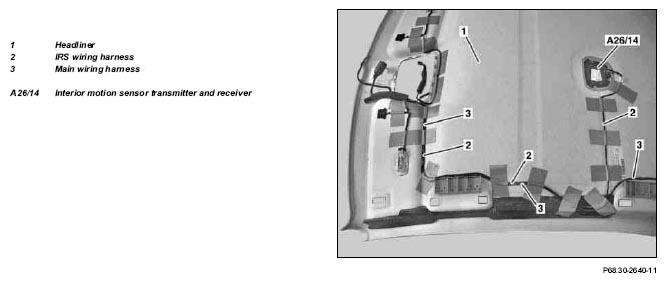

Illustrated on model 203.0 with code (543) sun visors with illuminated mirrors
- Connect new IRS wiring harness (2) to interior protection system transmitter/receiver (A26/14) and arrest interior protection system transmitter/receiver (A26/14) in installation frame.
- Route new IRS wiring harness (2) on new headliner (1) and glue to new headliner (1) with approx. 10 cm long strip of adhesive tape crossways at an interval of approx. 10 cm.
Do not cross main wiring harness (3) with new IRS wiring harness (2) and press strips of adhesive tape on sufficiently, otherwise a short circuit can result from chafing on the roof paneling.
The old headliner (1) serves as a guide for routing the wiring harness.
