Retrofitting genuine wood parts - AZ68.30-P-0003P
MODEL 203.7

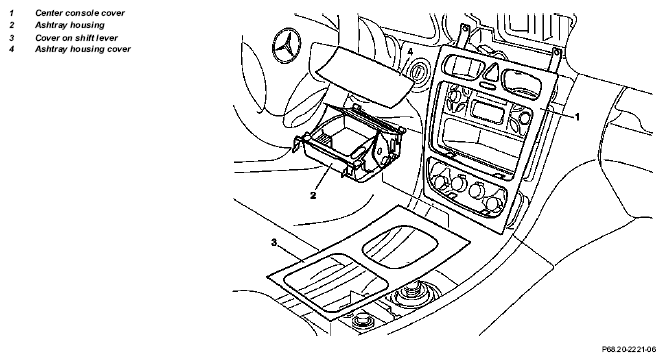

| Removing | |||
| 1 | Switch off ignition | ||
| 2 | Remove center air nozzle | ||
| AR68.10-P-1150P | |||
| 3 | Remove cover on center console | ||
| AR68.20-P-2350P | |||
| 4 | Remove cover on shift lever | ||
| AR68.20-P-2310P | |||
| 5 | Remove ashtray housing from center console | ||
| AR68.20-P-2400P | |||
| Installing | |||
| 6 | Retrofit genuine wood cover on ashtray housing | AZ68.20-P-0002-01P | |
| 7 | Complete vehicle with genuine wood trim |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| Type of wood: Calyptus Linea | ||
| B6 676 2430 | Top cover high dome | 1 |
| B6 676 2431 | Bottom cover high dome (with manual transmission) | 1 |
| B6 676 2432 | Bottom cover high dome (with automatic transmission) | 1 |
| B6 676 2433 | Ashtray cover | 1 |
| Type of wood: Lumaro | ||
| B6 676 2434 | Top cover high dome | 1 |
| B6 676 2435 | Bottom cover high dome (with manual transmission) | 1 |
| B6 676 2436 | Bottom cover high dome (with automatic transmission) | 1 |
| B6 676 2437 | Ashtray cover | 1 |
