Remove/install wheelhousing liner in rear wheelhousing - AR88.10-P-1400P

MODEL 203, 209

Shown on model 203.0

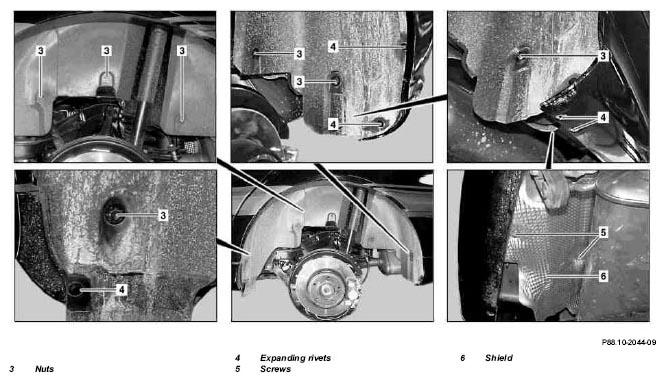

Fig 1: Identifying Wheelhousing Liner In Rear Wheelhousing Remove/Install Components (1 Of 2)

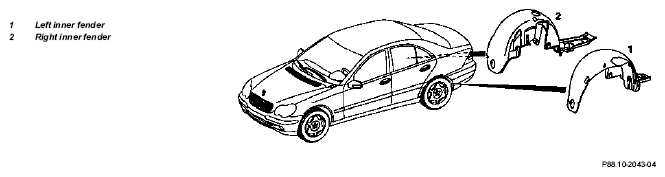

Fig 2: Identifying Wheelhousing Liner In Rear Wheelhousing Remove/Install Components (2 Of 2)

Shown on model 203.0

	Remove/Install
	Lethal injuries  are possible if vehicle slips off of lifting platform	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove rear wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
2	Unscrew nuts (3).
3	Pull out body-bound rivets (4)
4	Unscrew screws (5) on guard plate (6)
5	Push guard plate (6) to side	Do not damage shield (6).
6	Remove left inner fender (1), right inner fender (2).
7	Install in the reverse order
