Remove/install trunk lid lock cylinder - AR88.50-P-5061P

MODEL 203.0

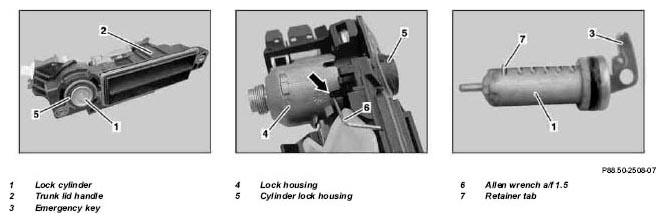

Fig 1: Identifying Trunk Lid Lock Cylinder Remove/Install Components

	Remove
1	Remove trunk lid handle (2) with lock cylinder (1)		AR88.50-P-5020P
2	Insert emergency key (3) into lock cylinder (1)
3	Turn lock cylinder (1) 45° counterclockwise with emergency key	The opening (arrow) in the lock housing (4) should coincide with the corresponding removal hole in the lock cylinder housing (5).
4	Insert Allen wrench a/f 1.5 (6) into opening (arrow) and press retainer tab (7) on lock cylinder (1)	So that lock cylinder (1) unlocks.
5	Pull lock cylinder (1) on emergency key (3) out of lock cylinder housing (5)
	Install
6	Arrest lock cylinder (1) in lock cylinder housing (5)	Carefully turn lock cylinder (1) in lock cylinder housing (5) to prevent damaging the retainer tab (7). Insert lock cylinder (1) with inserted emergency key (3) into lock cylinder housing (5) and turn counterclockwise until lock cylinder (1) locks in lock cylinder housing (5). While locking press lock cylinder (1) against spring located in lock cylinder housing (5)
7	Install trunk lid handle (2) with lock cylinder (1)		AR88.50-P-5020P
