Converting rear bumper - AZ88.00-P-0001-03N
Preparation

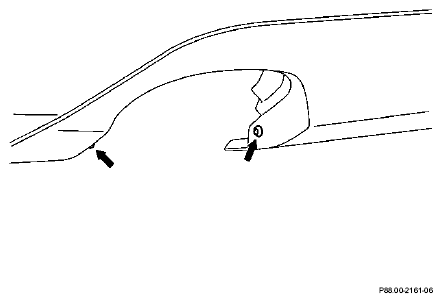

- Remove bumper

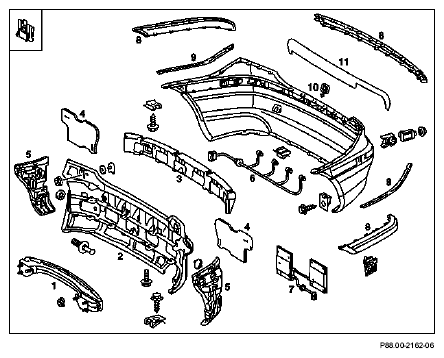

- Remove cross member (1) and inner section (2).
- Remove impact damper together with vapor barrier (4), side mount (5) and upper rail (9).
- Remove Parktronic wiring harness (6) and antenna (7) as well as moldings (8).
- Remove towing bracket cover (10).
- Reassemble and reinstall bumper in opposite order.
- Glue on plastic cover and fasten in addition with 2 rivets.
Assembling
