Preparing interior C-pillar paneling - AR63.10-P-0700-02P

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-02A	Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

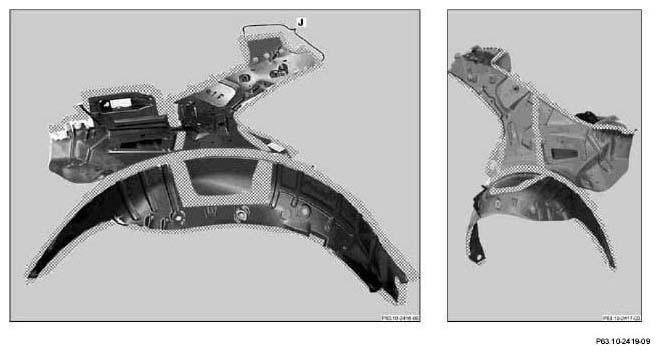

Fig 1: Identifying Interior C-Pillar Paneling Spot Welds Grinding Area (1 Of 2)

1. Grind connection surfaces to bare metal in checked areas. Grind spot welds to bare metal on both sides.
2. Punch Ø 7 mm holes (area J).
3. Coat insides of spot welding flanges with zinc dust paint.

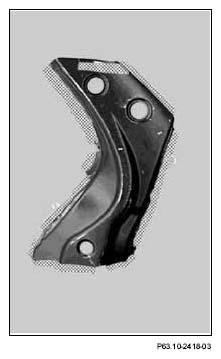

   Fig 2: Identifying Interior C-Pillar Paneling Spot Welds Grinding Area (2 Of 2)
