Xenon headlamps not functioning - AF82.10-P-6004D

MODEL 203.### #A as of 641751 up to 731367, 203.### #F as of 536084 up to 634899, 203.### #R as of 139004 up to 169519, 209.### #F as of 105129 up to 144090, 209.### #T as of 027369 up to 042953

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
P	025111	Replace control unit and bulb for left xenon headlamp
P	025115	Replace control unit and bulb for right xenon headlamp
P	025112	Replace control unit and bulb for left and right xenon headlamp

Damage code	Cause	Remedy
82 119 73	Transistor in xenon headlamp control unit (E1n1/E2n1) defective.	Left lamp unit: ↓
	The xenon bulb does not ignite and/or flickers.	1 Remove lamp unit.
		Model 203	AR82.10-P-4730P
		Model 209	AR82.10-P-4730QA
		When removing both lamp units: ↓
		Model 203	AR82.10-P-4730P
		Model 209	AR82.10-P-4730Q
		2 Remove/install/replace xenon headlamp control unit (E1n1) and xenon bulb.
		Model 203	AR82.10-P-4632P
		Model 209	AR82.10-P-4632Q
		Ensure that the ignition module latches in position correctly.
		3 Install lamp unit.
		Model 203	AR82.10-P-4730PA
		Model 209	AR82.10-P-4730QA
		When installing both lamp units: ↓
		Model 203	AR82.10-P-4730P
		Model 209	AR82.10-P-4730Q
		Right lamp unit: ↓ Removal of lamp unit not required. 4 Remove/install/replace xenon headlamp control unit (E2n1) and xenon bulb.
		Model 203	AR82.10-P-4632P
		Model 209	AR82.10-P-4632Q
		Ensure that the ignition module latches in position correctly.

Illustrated on model 203.0

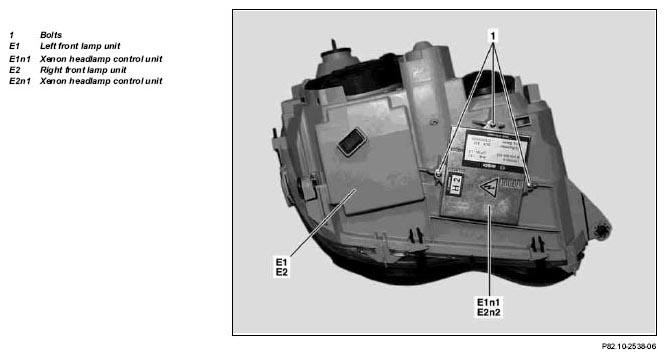

Fig 1: Identifying Xenon Headlamps Functioning - Illustrated On Model 203.0

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 002 820 60 26	Control unit (model 209: Bi-xenon control unit code 615/616)	1
A 203 820 16 85	Control unit (model 203: Bi-xenon control unit code 614/618)	1
A 203 820 25 26	Control unit (model 203: xenon control unit code 612/617) Control unit (model 209: Bi-xenon control unit code 614/618)	1
N 910 139 00 00 01	Hot space (xenon burner)	1
