Windshield washer system leaks - AF82.35-P-4042AU

MODEL WDB203.2## #F up to 267524

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	023748	Seal hose of washer system for rear window	010 WU/0.8 h	-	-

Damage code	Cause	Remedy
86 071 04	The washer water line can slip off in the event of increased line pressure (e.g. frozen nozzle tips) if adhesion is not sufficient or the line is not inserted deeply enough.	1 Install metal hose clamps at connection points of washer water line.
		Provide for sufficient anti-freezing agent in the windshield washer system during the winter months. Do not use grease for sliding on washer fluid hoses, danger of slipping off!

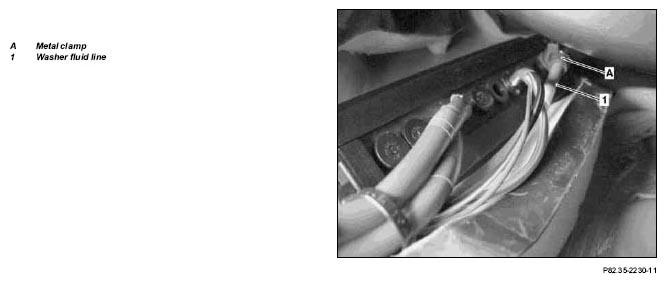

Figure 1, washer water line - tailgate

Fig 1: Identifying Washer Water Line - Tailgate

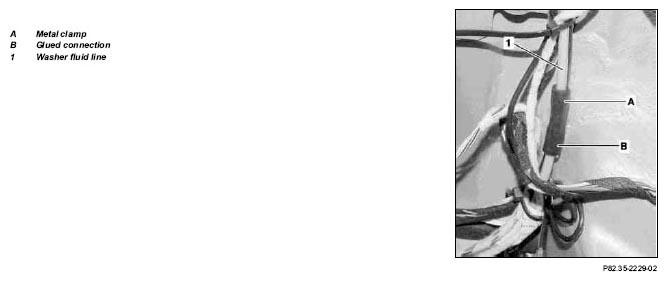

Figure 2, washer water line - load compartment

Fig 2: Identifying Washer Water Line - Load Compartment

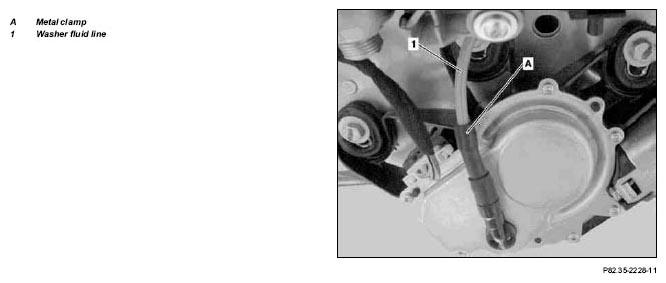

Figure 3, washer water line, A-pillar, on right in passenger compartment

Fig 3: Identifying Washer Water Line, A-Pillar, On Right In Passenger Compartment

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 005 997 88 90	Metal - hose clamp	3
