Spray nozzle for rear window washer incorrectly adjusted - AF82.35-P-2004A

MODEL WDB203.2## ## as of 372201

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	023832	Adjust spray nozzle for rear window washer	001 AW/0.1 hrs.	-	-

Damage code	Cause	Remedy
86 073 51	Spray nozzle incorrectly adjusted	1 Check two-jet spray nozzle for correct adjustment, adjust if required (see figure)
	When the new two-jet spray nozzle (rear window) is actuated it is possible that the washing water jet is not optimally adjusted.	The two target points (1) are approx. 270 mm (a) below the center high-mounted stop lamp (measured from bottom edge).

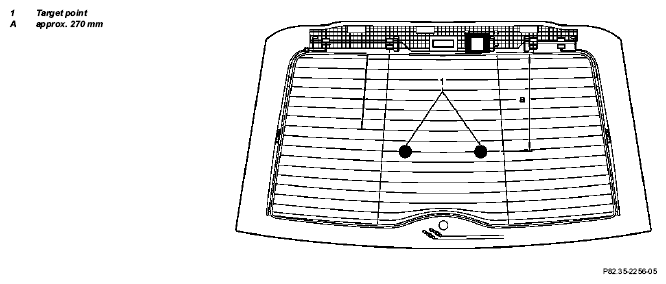

Fig 1: Spray Nozzle For Rear Window Washer Incorrectly Adjusted
