Bulbs in rear lamps nonfunctional - AF82.10-P-6003A

Model WDB203

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text	Time	Acc. no.	Code
P	023801	Retrofit adapter cable for rear lamp units	003 WU	-	-

Damage code	Cause	Remedy
59 555	Bulbs burn out in rear lamps (parking lamps and taillamps). The optimum voltage for this function is normally 12 V. However, the actual vehicle voltage can be approx. 13.4 - 14.8 V. This excessive voltage can be critical for the rear lamp bulbs 1 additional volt reduces the service life of the bulbs.	Use adapter cable with higher resistance in taillamp harness and rear lighting to reduce voltage by approx. 1 V. 1 Retrofit adapter cable between rear lighting plug and rear lighting The adapter cable is identical for the left and right sides Wiring harness with integrated resistors installed as standard features as of 12/2002

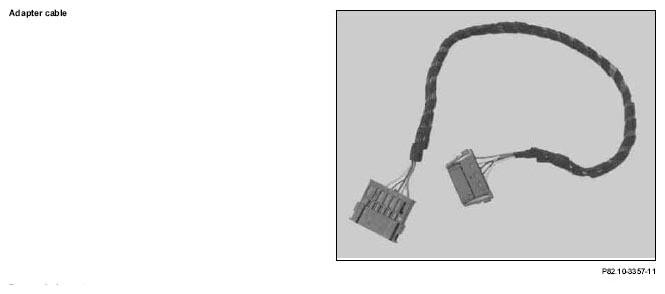

Fig 1: Identifying Adapter Cable

G04735736

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 203 440 26 13	Adapter cable	2
