Route wiring harness and connect - AZ54.65-P-0001-06MS

203.2

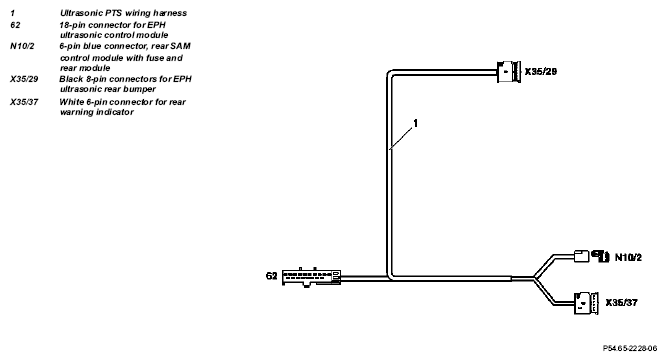

Fig 1: Identifying Ultrasonic PTS Wiring Harness

1. Route PTS ultrasonic (1) for ultrasonic PTS control module (62) to rear SAM control module with fuse and relay module (N10/2) and fasten with felt strap.
2. Connect tie-out with white 6-pin connector to counter connector for rear warning indicator connector (X35/37).
   Fig 2: Identifying PTS Ultrasonic And Rear Sam Control Module With Fuse And Relay Module


3. Route tie-out with 6-pin blue connector to rear SAM control module with fuse and relay module (N10/2) and connect to plug location marked in blue (see magnified section).
4. Route tieout for ultrasonic backup assist wiring harness (1) with 8-pin connector to cargo threshold through left side compartment along present leads and fasten.
   Fig 3: Identifying SAM Control Module With Fuse And Relay Module And Wiring Harness


5. Route tieout for ultrasonic backup assist wiring harness (1) to right side of vehicle below cargo threshold along present leads and fasten with four cable straps.
6. Connect ultrasonic backup assist wiring harnesses (1) and ultrasonic sensor wiring (1a) using connector (X35/29).
   Fig 4: Identifying Wiring Harnesses, Ultrasonic Sensor Wiring And Connector


7. Install rear SAM control module with fuse and relay module (N10/2)
8. Fit fuse 13 (N10/2f13) with a 5A fuse.

   Check whether relay 1 circuit 15R (N10/2kF) is inserted in plug location F, if not, connect relay 1

   Fig 5: Identifying Rear SAM Control Module With Fuse And Relay Module
