Retrofit wiring harness for electronic vehicle log - AZ54.61-P-0001-02T
- Drill a hole (arrow) of dia. 6 mm in the top left corner of the glove compartment from the front.
- Pass wiring harness for electronic vehicle log through the hole behind the glove compartment and from there to the radio recess.

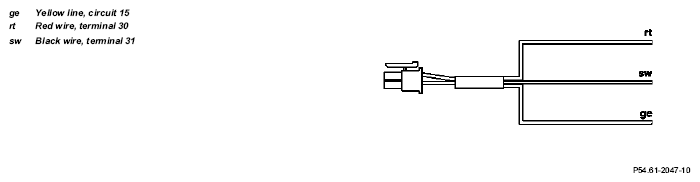

Wiring harness for electronic vehicle log
- Connect the red/white line (rt/ws) from the cigarette lighter to the yellow line (ge) from the wiring harness for the electronic vehicle log by means of terminal connector.
- Connect red/yellow wire (rt/ge) from radio to red wire (rt) from wiring harness for electronic vehicle log using a cable connector.
- Connect brown wire (br) from cigarette lighter to black wire (sw) from wiring harness for electronic vehicle log using a cable connector.
Cable colors on example of model 211. In the event of deviating cable colors, check the cable assignment from the connection.
