Removing, installing rear seat cushion - AR91.12-P-1020PC
MODEL 203.0 except CODE (287a) Through-loading feature

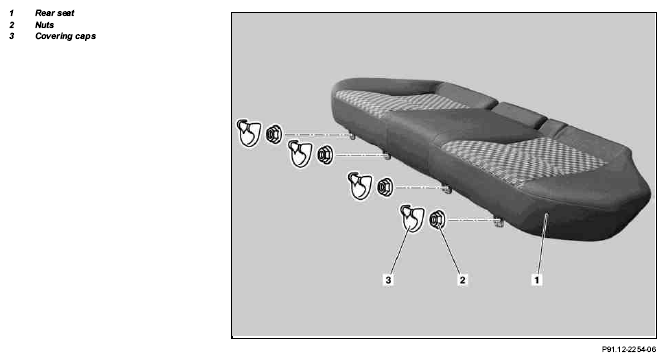

Fig 1: Identifying Rear Seat Cushion Removing/Installing Components - Model 203.0 Except Code (287A) Through-Loading Feature
| Removing, installing | |||
|---|---|---|---|
| 1 | Remove covering caps (3) | ||
| 2 | Unscrew nuts (2) | ||
| 3 | Remove rear seat cushion (1) | ||
| 4 | Install in the reverse order |
