Preparing rear end for welding in - AR64.20-P-1020-02PB

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1001-02A Hole punching pliers, dia. 6 mm.
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42

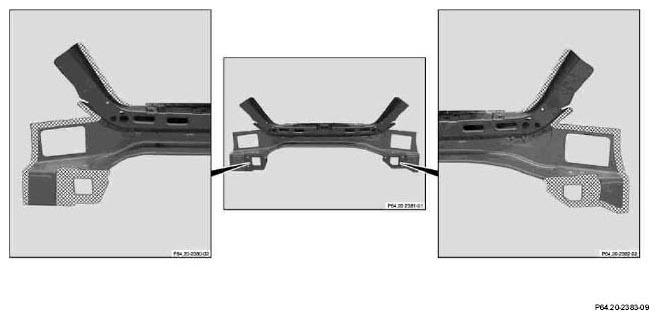

Fig 1: Identifying Rear End Grinding Areas
G04735211
  1. Grind connection surfaces down to bare metal in shaded areas. Grind spot welding flanges down to bare metal on both sides Coat insides of spot welding flanges with zinc dust paint.
  2. Punch holes with 6 mm dia. bit (area B)
  3. Punch holes with 6 mm dia. bit (area A)

    IMPORTANT Left side is illustrated.

    Fig 2: Identifying Rear End Punch Holes
    G04735212
