Garage door opener, function - GF68.05-P-0001A

MODEL 129, 202 as of 1.6.98, 203, 208, 210 as of 1.6.98, 215, 220, 230 with CODE (231a) Garage door opener

MODEL 163 as of 1.9.01, 170 as of 1.6.98

Shown on model 230

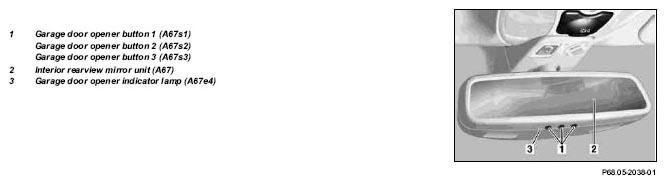

Fig 1: Identifying Garage Door Opener Button And Interior Rearview Mirror Unit - Model 203 As Of 1.6.98

Garage door opener, function

The garage door opener consists of an intelligent radio remote control with three transmitter buttons capable of learning. Various receivers for opening and closing systems and doors can be activated with the three buttons, garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3 (A67s3).

Program remote control

Function requirements:

Term. 15R or 15 ON
Press and hold down garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3 (A67s3).
The garage door opener indicator lamp (A67e4) starts flashing (frequency 1 Hz).
Continue to actuate garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3 (A67s3) and hold garage door remote control with transmit button pressed for t < 90 s.
After successful programming, the garage door opener indicator lamp (A67e4) flashes rapidly (f = 5.5 Hz) for approx. 10 s.
Release the two transmit buttons and program additional transmitters as required.

Time switch-off

To protect the vehicle battery, the transmitter unit switches off the learn-in mode when programming is not accomplished within approx. 100 s.

Transmitter mode

If garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3 (A67s3) is actuated, the signal learned for this memory location is transmitted activating the associated garage door drive.

The garage door opener (signal has a range of at least 15 m.

Erasing

Circuit 15 R or circuit 15 ON.
Simultaneously press garage door opener button 1 (A67s1) and garage door opener button 3 (A67s3) and hold down for approx. 20 s. The garage door opener indicator lamp (A67e4) starts to flash.
After the LED starts to flash, release garage door opener button 1 (A67s1) and garage door opener button 3 (A67s3) within 10 s while garage door opener indicator lamp (A67e4) is flashing. The existing data of the memory locations is erased.

The memory can be deleted by actuating garage door opener button 1 (A67s1) and garage door opener button 3 (A67s3) for longer than 20 s. The LED flashes rapidly for approx. 10 s indicating that all memory locations have been successfully deleted.

	Notes and list of compatible garage door drives for garage door opener		AH68.05-P-0001-01A
	Garage door opener transmitter, location/ purpose		GF68.05-P-1100A
