Partially replace tailgate liner - AR68.30-P-1055PA

MODEL 203.2

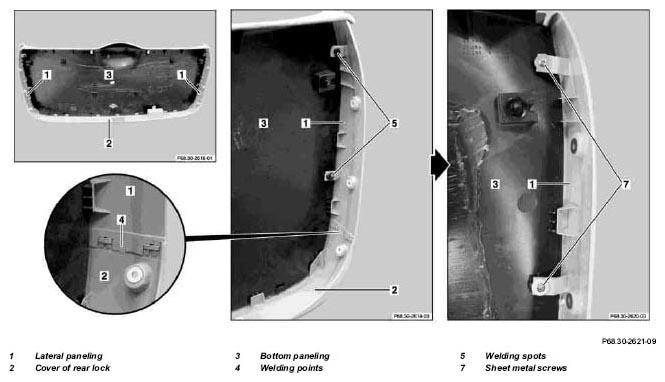

Fig 1: Identifying Tailgate Liner Components (1 Of 2)

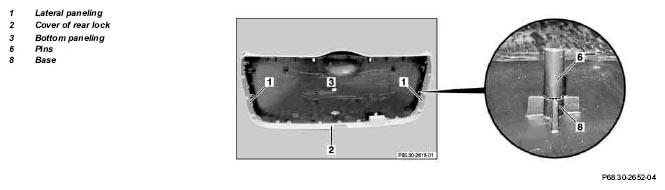

Fig 2: Identifying Tailgate Liner Components (2 Of 2)

	Remove
1	Remove liner on tailgate		AR68.30-P-1050PA
	Dismantling
2	Mill off welding points (4)
3.1	Mill off welding spots (5)	Required only for replacing lateral panelings (1) and bottom paneling (3).
4	Unclip and remove lateral paneling (1), cover of rear lock (2) or bottom paneling (3) depending on the repair	The bottom paneling (3) can only be replaced, if the lateral panelings (1) and the cover of the rear lock (2) have been removed beforehand.
	Assembly
5.1	Cut off pins (6) at the new part above the bases	Required only for replacing bottom paneling (3).
6	Clean panelings
7	Insert lateral paneling (1), cover of rear lock (2) or bottom paneling (3) depending on the repair
8.1	Screw sheet metal screws (7) with shims into the bases (8)	Required only for replacing lateral panelings (1) and bottom paneling (3).
9	Melt welding points (4) by means of a soldering iron
	Install
10	Install door tailgate liner		AR68.30-P-1050PA
