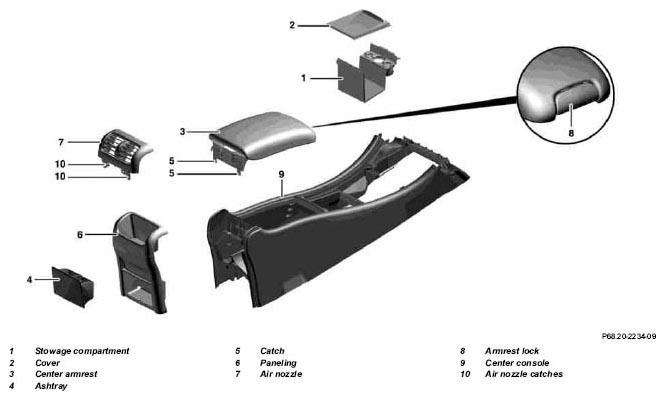

Disassembling and assembling center console - AR68.20-P-2150P
MODEL 203
| Disassembling, assembling | |||
|---|---|---|---|
| 1 | Remove and install center console | AR68.20-P-2000P | |
| 2 | Unclip stowage compartment with cigar lighter (1), remove | ||
| 3 | Close cover (2) and remove | ||
| 4 | Release center armrest and position vertically | ||
| 5 | Remove center armrest (3) upward out of guide | ||
| 6 | Remove armrest lock (8) out of center armrest (3) | ||
| 7 | Remove ashtray (4) | ||
| 8 | Press back catch lugs in ashtray housing and remove paneling (6) upward | ||
| 9 | Press back air nozzle catches (7) and remove | With code (581b) convenience automatic air conditioning | |
| 10 | Assemble in reverse order |
