Load compartment cover sags on the right side - AF68.50-P-2003A

MODEL 203.2## #A up to 624000, 203.2## #F up to 528000, 203.2## #R up to 137000

Damage code	Cause	Remedy
81 041 38	Some vehicle tolerances and the wrong setting of the load compartment cover can lead to the cover sagging on the right side.	1 Measure the amount of sag (a) of the load compartment cover on the right side (figure 1). Measure between the lower edge of the guide rail in the side panel and the lowest point of sag on the cover. If more than 2 cm  of sag is present, replace the twin roller blinds. The adjustment described does not have to be performed.
		If the sag on the right side of the cover is not more than a max of 2 cm  : ↓
		2 Remove twin roller blinds out of the guides in the rear seat backrest.
		3 Remove the load compartment cover from the left mount on the 2/3 side of the rear seat backrest (figure 2).
		4 Install one shim per bolt (figure 3). Shim dimensions: Inside diameter 6.4 mm Outside diameter 17 mm Thickness 3 mm
		5 Reinstall the load compartment cover onto the left mount on the 2/3 side of the rear seat backrest.
			*BA68.50-P-1001-01A
		6 Reinstall the twin roller blinds into the guides on the rear seat backrest.
		7 Unscrew the rear seat backrest stop buffer on the right side until both sides of the cover have the same tension (figure 4). Make sure that the stop buffer is not completely unscrewed from its bracket.
		If the customer comes in again with this complaint, replace the twin roller blinds.

Figure 1

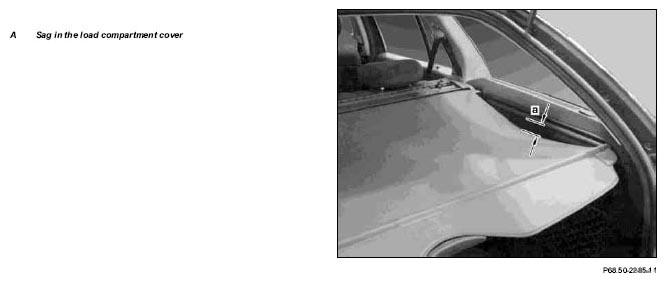

Fig 1: Identifying Sag Load Compartment Cover

Figure 2

Fig 2: Identifying Left Mount Of Twin Roller Blinds On 2/3 Side Of Rear Seat Backrest

Figure 3

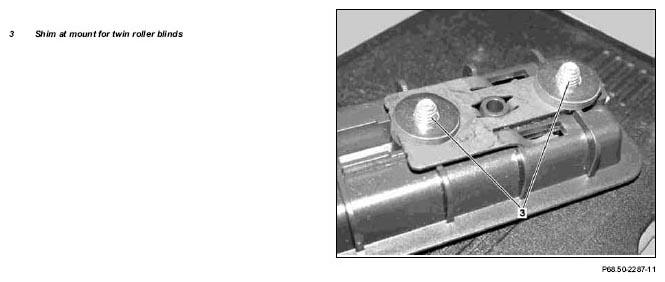

Fig 3: Identifying Shim Mount For Twin Roller Blinds

Figure 4

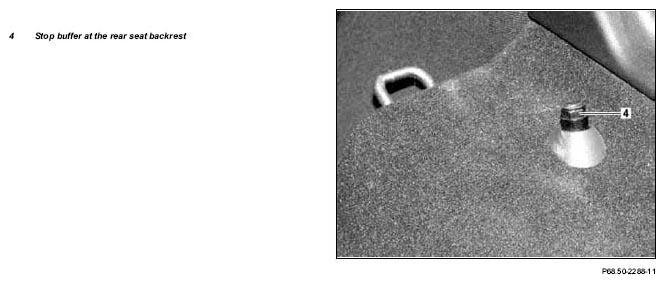

Fig 4: Identifying Stop Buffer Rear Seat Backrest
