Draft from B-pillar - AF68.30-P-3100P

MODEL 203.0 /2 Only vehicles up to status Q08

Damage code	Cause	Remedy:
69 011	When driving with sliding roof open, a vacuum forms in the passenger compartment. This causes air to be sucked out of the hollow cavities in the body through the opening in the B-pillar paneling into the passenger compartment resulting in a draft.	1 Remove lower paneling of B-pillar.	AR68.30-P-4700P
		2 Replace lower B-pillar paneling with B-pillar paneling with sticker Q08 or higher (fig. 1). Paneling parts with Q08 and higher have a completely closed web at the top (fig. 2).
		3 In addition, glue self-adhesive foil seal to B-pillar. Position foil seal on B-pillar precisely (fig. 3).
		4 Reinstall B-pillar paneling.	AR68.30-P-4700P

Figure 1

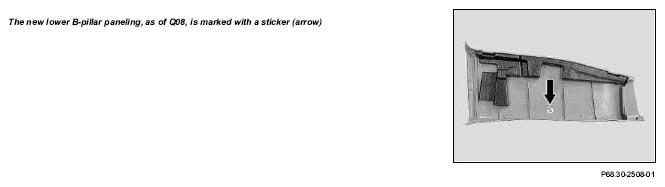

Fig 1: Locating Lower B-Pillar Paneling, Q08 - Marked With Sticker

Picture 2

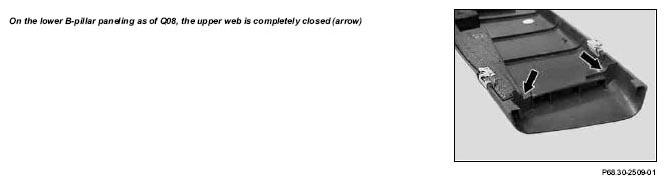

Fig 2: Locating Lower B-Pillar Paneling, Q08 - Upper Web Completely Closed

Picture 3

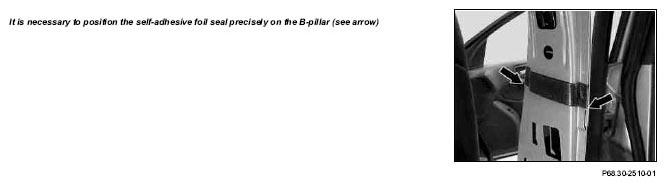

Fig 3: Locating Self-Adhesive Foil Seal Precisely On B-Pillar
