Remove and install cup holder - AR68.00-P-1000P

MODEL 203 with CODE (309) Cup holder

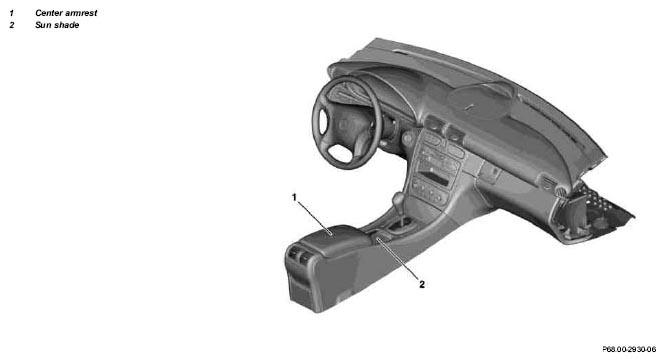

Fig 1: Identifying Center Armrest And Sun Shade

Fig 2: Identifying Cup Holder, Push-button And Rubber Insert

Fig 3: Identifying Cup Holder Flap

Fig 4: Identifying Wall And Fish-Plate

	Remove/install
1	Pivot open center armrest (1)
2	Slide sun shade (2) toward rear
3	Move out cup holder (3)	Press button (4)
4	Remove rubber insert (5)	When the flap (6) is touched the cup holder may no longer function.
5	Release cup holder (3).	When the flap (6) is touched the cup holder may no longer function. Press wall (7) toward front and simultaneously press lug (8) upward.
6	Pivot cup holder (3) out to side and remove	When the flap (6) is touched the cup holder may no longer function.
7	Install in the reverse order
