Retrofitting sun blind wiring harness - AN68.50-P-0001-01P

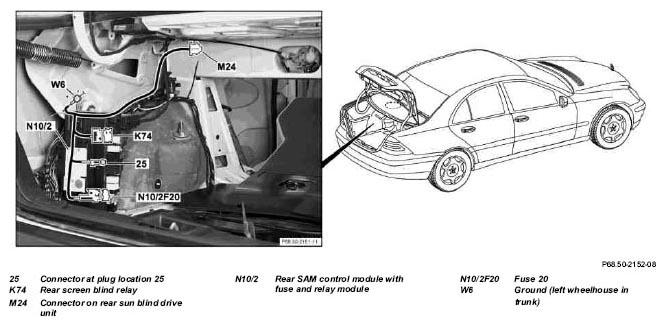

Fig 1: Retrofitting Sun Blind Wiring Harness

Remove absorber (1).

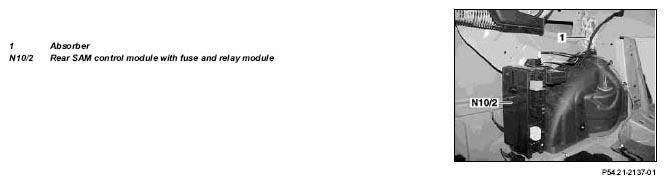

Fig 2: Identifying Rear SAM Control Module With Fuse And Relay Module

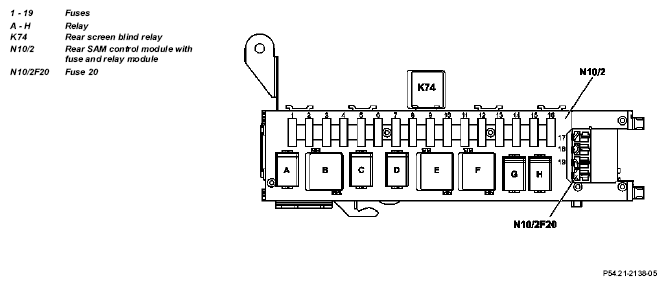

Fig 3: Identifying Relay, Fuses And Rear Screen Blind Relay
Clip in fuse 20 (N10/2F20) together with fuse holder.
Install connector (25) on plug location 25.
On connector strip on rear SAM control module with fuse and relay module (N10/2).
Install relay for rear sun blind (K74).
Install relay plug location F and fuse 13.
Depending on vehicle equipment.
Screw on ground (left wheelhouse in trunk) (W6)
Route electric sun blind wiring harness along present wheelhouse and fasten with cable straps.
Route connector on rear sun blind drive unit (M24) to passenger compartment.
