Removing and installing rubber mounts on rack-and-pinion steering mounting - AR46.20-P-0600-02I

REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Lubricant A 000 989 01 60

    Remove

  1. Press out divided rubber mount (21a, 21b) using a suitable tool.

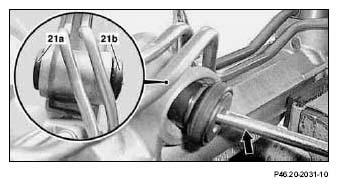

    Fig 1: Pressing Out Divided Rubber Mount
    G04737154

    2. Install

  2. Rub the circumference of the divided rubber mounts (21a, 21b) with liquid lubricant (Naphtolen H).
  3. Hammer in divided rubber mounts (21a, 21b) as far as possible using a rubber hammer.
  4. Draw in divided rubber mounts (21a, 21b) completely using bolt and wing nut.
    Fig 2: Installing Divided Rubber Mount
    G04737155
