Removing and installing rear center seat belt - AR91.40-P-0683P

MODEL 203.0 with CODE (287a) Through-loading feature

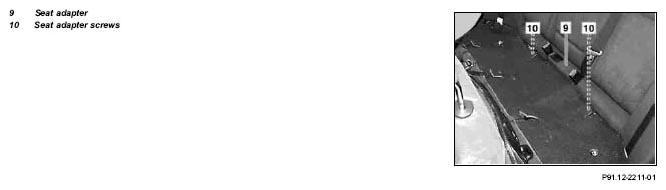

Fig 1: Identifying Seat Adapter And Screws

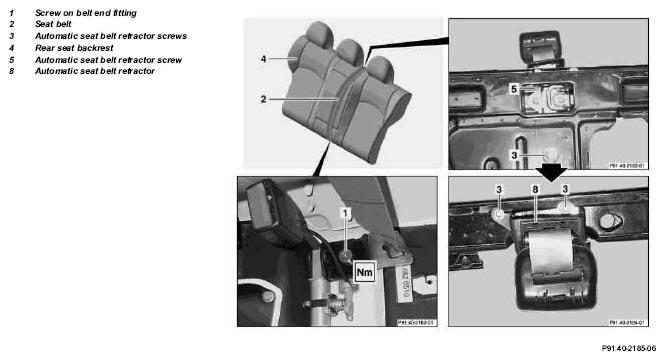

Fig 2: Identifying Rear Center Seat Belt Remove/Install Components

	Removing, installing
	The spring in the inertia reel can pose an injury  hazard when the tension is released and it uncoils.	Never disassemble inertia reels	AS91.00-Z-0002-01A
1	Release rear seat cushion and fold forwards
2	Unscrew screws (10)
3	Remove seat adapter (9)
4	Unscrew screw (1) at belt end fitting	Installation:  Ensure that the belt end fitting engages. Screw at belt end fitting	*BA91.40-P-1001-01A
		Torx bit set	Figure
5	Loosen rear seat backrest cover if necessary	See: ↓
		Remove and install rear seat backrest cover	AR91.18-P-1870P
6	Unscrew bolt (5)
7	Unscrew screw (3) at inertia reel (8)	Screw at rear inertia reel	*BA91.40-P-1006-01A
		Torx bit set	Figure
8	Remove inertia reel (8)
9	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 203
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	30
BA91.40-P-1006-01A	Bolt to rear inertia reel	Nm	30

Fig 3: Identifying Torx Bit Set (000 589 01 10 00)
