Air shutoff valve position - GF14.30-P-4028-01GS

Engine 111 EVO

Engine 111 EURO3/4 with supercharger

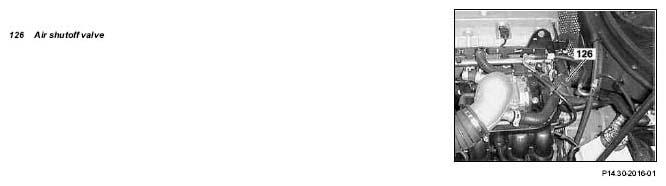

Fig 1: Identifying Air Shutoff Valve - Engine 111 EURO3/4 With Supercharger

G04732228
