Weld main floor, bottom - AR63.40-P-1180-12P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1006-08A | Cavity preservation gun |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

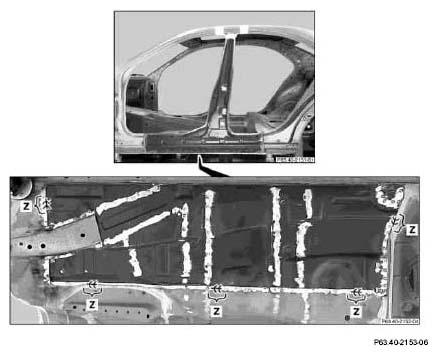

main floor from bottom of vehicle (area Z).
- Clean welds with wire brush.
- Paint welds with zinc dust paint.
- Seal main floor from bottom of vehicle with body sealant.
Shown on model 203.0
