Preparing outer side wall - AR63.10-P-0805-02PB

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-02A	Hole punching pliers, dia. 6 mm.
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A

Drill (electric/pneumatic)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

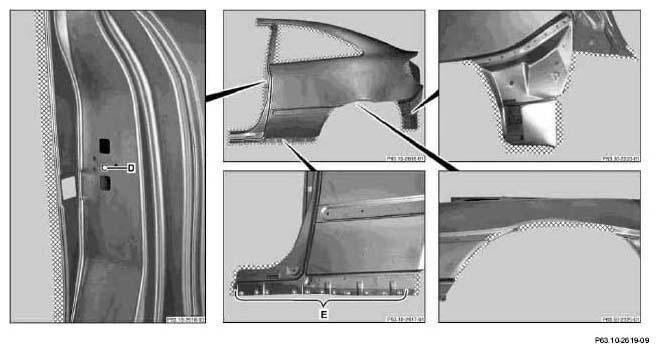

Fig 1: Identifying Outer Side Wall Spot Welding Flange Grinding Area (1 Of 2)

1. Drill 7 mm dia. hole in new part (area D).
2. Punch holes provided for riveting with 6 mm dia. punch (area E).
3. Grind spot welding flanges in shaded areas down to bare metal on both sides. Coat inside of spot welding flanges with zinc dust paint

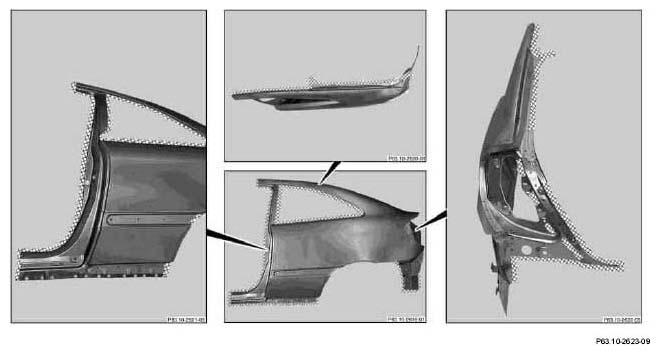

   Fig 2: Identifying Outer Side Wall Spot Welding Flange Grinding Area (2 Of 2)
