Install outer rear wheel well - AR63.10-P-0670-06PB
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 203.706/707/ 708/718/730/ 735/740/742/ 743/745/746/ 747/752/756/ 764 | |||
|---|---|---|---|---|---|
| BE60.00-P-1002-01E | Gap dimension | Front door to A-pillar | Dimension "B" | mm | 6.5 (+1) |
| Front door to fender | Dimension "H" | mm | 3.5 (-0.5/+1) | ||
| Front door to rear door | Dimension "I" | mm | - | ||
| Front door to roof | Dimension "C" | mm | - | ||
| Rear door to C-pillar | Dimension "T" | mm | - | ||
| Rear door to side piece, bottom | Dimension "J" | mm | - | ||
| Front door to rear fender | Dimension "P" | mm | 3.5 (+1.0/-0.5) | ||
| See picture | AR60.00-P-0700-01PB | ||||
| BE60.00-P-1003-01E | Gap dimension | Trunk lid to rear fender, top | Dimension "F" | mm | - |
| Trunk lid to taillamp | Dimension "M" | mm | - | ||
| Rear fender to taillamp | Dimension "U" | mm | 2.5 (± 0.5) | ||
| See picture | AR60.00-P-0700-01PB | ||||
| BE60.00-P-1004-01E | Gap dimension | Rear-end door to roof | Dimension "E" | mm | 8.5 (+1) |
| Rear-end door to rear fender | Dimension "M" | mm | 3.5 (± 1) | ||
| Rear-end door to taillamp | Dimension "L" | mm | 4 (± 1) | ||
| Rear-end door to bumper | Dimension "S" | mm | 6.5 (-1.5) | ||
| Rear-end door to D-pillar | Dimension "Q" | mm | - | ||
| See picture | AR60.00-P-0700-01PB | ||||
| BE60.00-P-1005-01E | Gap dimension | Fuel filler flap | Dimension "K" | mm | 3.5 (± 1) |
| See picture | AR60.00-P-0700-01PB | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
- Fit outer wheel well with rear fender and fix in place
- Install rear lamp, rubber seal and locking eye.

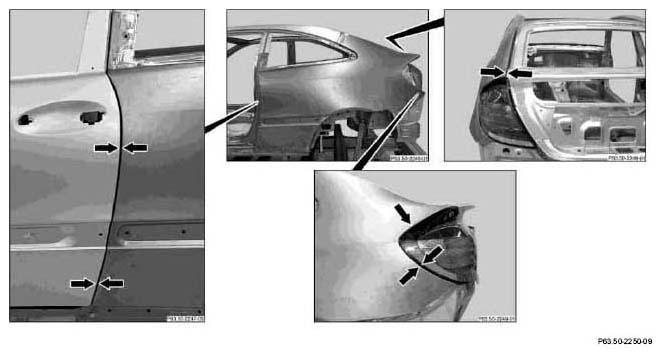

- Check gaps and adjust (see arrows)
Use feeler gauge.

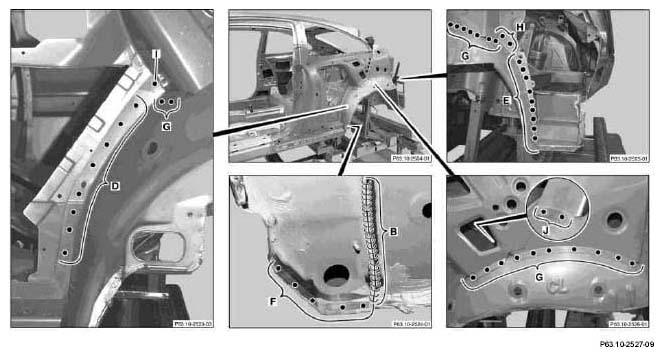

- Outer rear wheel well
(areas D to G).

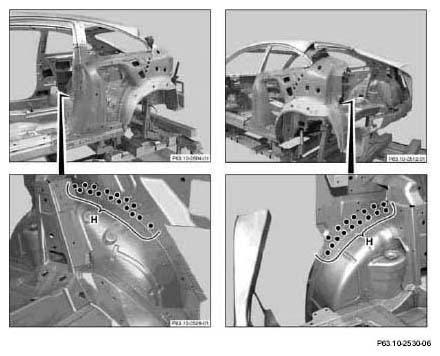

- Outer rear wheel well
(areas H, I and J).
- Outer rear wheel well
- 6 Outer rear wheel well
(area B).
- 7 Remove grinding and drill shavings using wet/dry vacuum cleaner.
