Electronic stability program (ESP), location of electronic components - GF42.45-P-0001-03PP

Model 203 to 7/01

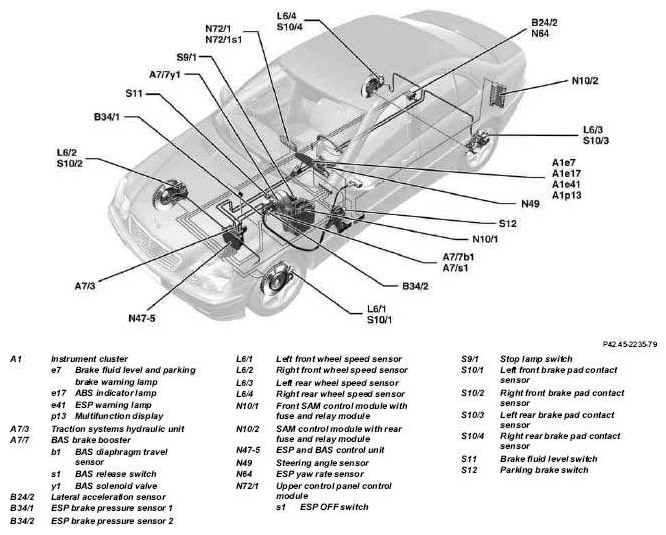

Fig 1: Identifying Electronic Stability Program Electronic Components Location (Model 203 Up To 7/01)
G04733477
