| 1 |
Move front seats toward front |
|
|
| 2 |
Remove edge guard in area of B-pillar paneling |
|
|
| 3 |

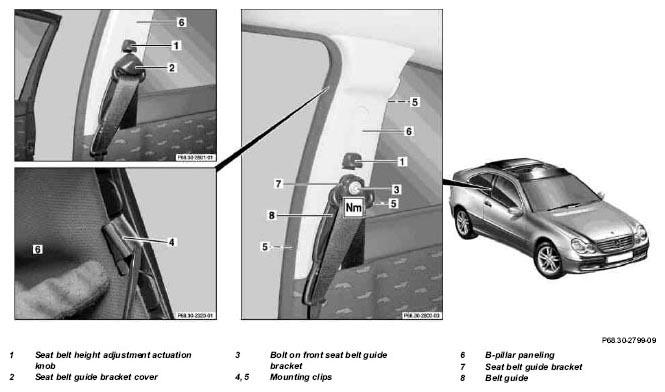

Unclip seat belt height adjustment actuation knob (1) |
Danger of breakage! |
|
| 4 |
Remove seat belt guide bracket cover (2) |
|
|
| 5 |
Unscrew bolt from front seat belt guide bracket (3) |
 |
*BA91.40-P-1002-01A |
| 6 |
Remove seat belt guide bracket (7) with belt guide (8) |
|
|
| 7 |
Remove mounting clips (4) from B-pillar cutout |
Do not damage paint! |
|
| 8 |
Unclip B-pillar paneling (6) from mounting clips (5), remove |
|
|
| 9 |
Install in the reverse order |
|
|
| 10 |
Check belt guide and belt height adjustment for proper function |
|
|
